Willcox MarineMaster 1151GG 6 in. Composite Dock Hose w/ Fixed Flanged x Floating Flanged Ends

Description

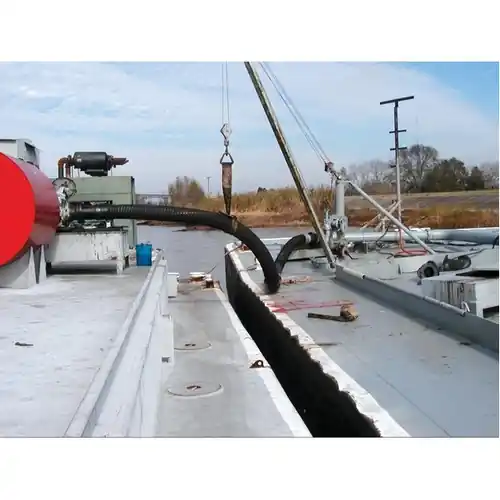

Marine ship-to-shore and ship-to- ship transfer hose. Use for portable pump, temporary pipeline, hazardous chemical transfer, and petroleum, chemical, and acid transfer applications. Comes fully assembled with fixed floating vapor recovery hose flanges that are specially drilled per Coast Guard specification 154-500. Notes: Other flanges, sizes, lengths available. Please call 1-800-333-3331 for more information. Specifications Type: Dock Hose I.D.: 6 in. (150 mm.) Length: 30 – 50 ft. – Other lengths available – Please call 1-800-333-3331 for more information Hose Ends: Fixed 150
# CS Flange Floating 150
# CS Flange Cover: Double PVC Coated Nylon, Abrasion, UV and Ozone Resistant (Royal Blue) Inner Wire: Galvanized Steel Inner Lining: High Grade Polypropylene Carcass: Polypropylene Fabrics, Films and Polypropylene Seamless Tubes Outer Wire: Galvanized Steel Temperature Range: –22¡F to +212¡F (-30¡C to +100¡C) Maximum Elongation: ²10% on Test Pressure Working Pressure: 250 PSI (17.5 bar) @ 70¡F (21¡C), Based on Safety Factor 4:1 Vacuum Range: 26 in. Hg (660 mm. Hg), 0.9 Bar Electrical Properties: Electrically Conductive Minimum Bend Radius: 20 in. (500 mm.) Weight: 7 lbs./ft. (10.5 kg./m.) Standards: EN13765:2010, IMO, IBC, BS5842, USCG 33CFR 154.500 Applications: For use as a bulk hydrocarbon or chemical transfer hose from barges, ships, jetties or for heavy duty in-plant uses where high flexibility and resistance to kinking is required
