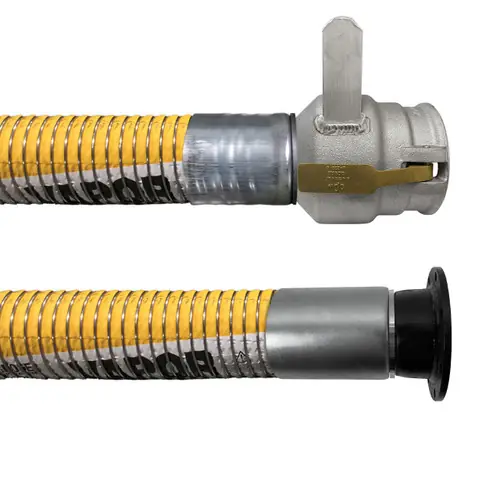

Willcox Composite 4 in. Vapor Recovery Hose Assemblies w/ CPP with Handle x TTMA Ends

Description

WillcoComposite 4 in. Vapor Hose Assembly is compatible with gasoline, diesel, and most biofuels. This hose comes fully assembled with a TTMA Flange on one end and an OPW CPP female coupler with custom handle. We cut all our hose to length, attach the ends, and ground all of our hose assemblies. Please call for pricing on other vapor hose assemblies, due to the wide variations of hose length and fittings involved. We want to be sure you get the right vapor hose for your application. Other lengths and fittings available – please call 1 (800) 333-3331 for details!FeaturesConstructed from high grade polypropyleneLightweight and flexible even in sub-zero temperaturesAbrasion, UV and Ozone resistantDesigned for use in tank truck, railcar and in plant applicationsSpecificationsSeries: WillcoVapor RecoveryInside Diameter (I.D.): 4 in. (101.6 mm.)Length: 10 – 30 ft. – Other Lengths Available – Please Call 1 (800) 333-3331 for More InformationHose Ends: 4 in. Female Vapor Camlock Coupler 4 in. TTMACover: PVC Coated NylonInner Lining: High Grade PolypropyleneInner Wire: T316 Stainless Steel WireOuter Wire: Galvanized SteelMinimum Bend Radius: 9 in. (225 mm.)Working Pressure: 100 PSI (7 bar)Vacuum Rating: 26 in. Hg (0.9 bar)Temperature Range: -22°F to +180°F (-30°C to +80°C) – Service Temperature Depends on Actual ApplicationFuel Compatibility: Gasoline, Diesel and Most Biofuels, Such as Ethanol (up to E98) and Biodiesel Vapors (B100 Meeting ASTM D-6751)Standards: EN13765:2010, Type 2, IMO, IBC, BS5842, NAHAD-600:2005Color: Yellow with White StripeWeight: 1.8 lbs./ft. (2.7 kg./m.)
