Varec 2500 Automatic Tank Gauge Basic Maintenance Kit – Imperial

Description

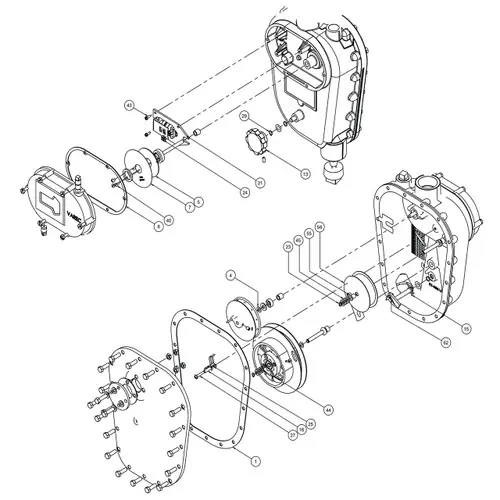

The basic maintenance kit provides all the parts required for extended maintenance on the 2500 Automatic Tank Gauge. Kit Contents ItemPart NumberQuantity 1 B4396-046 Gasket back cover (LP Iron, prior to 1983) 1 1 02-04490-046 Gasket back cover (Die-Cast B, 1983 – 2012) 1 1 02-013127-046 Back cover gasket 1/16 (2013 and later) 1 4 B7415-093 Teflon washer 1 5 B8235-040 Vydyne 22HSP ENG dial gear 1 6 02-013187-046 Counter cover gasket sloped 1 7 B8218-001 Dial 2500 Alum Eng 1 15 B7796-005 Gauge spring check 2500 1 16 BA113346 Tape keeper assembly 1 21 BM18849-100 English counter assembly 1 23 P10-2 Retaining ring, 5/16 SS 4 24 P25-16 Delrin pinion gear 1 25 B7300-005 Tape Keeper Spring (included as part of BA11346) 1 27 P31-669 Binding head machine screw (included as part of BA11346) 1 40 P031-01-1719 Pan head machine screw,
#8-32 1/4, 18-8 SS 3 43 P031-08-1720 HWH Slot 8-32 1/2 18-8 SS 6 44 P31-1 Washer 9/16 21/64 1/16 SS 6 45 P31-13 Washer-Shim .562 .316/.313 .005 SS 18 55 02-09598 Bushing, shoulder (PTFE) 4 56 B14872-101 Motor top plate 1 62 B7795-005 Hair pin spring (BA14055) 1 72 P031-29-1883 Shim slotted with tab .010 1Downloads Product Manual (PDF Download)
