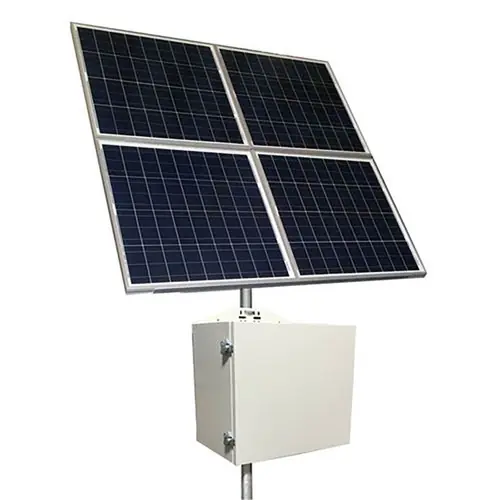

Tycon Systems® RemotePro® 340W Solar, 12/24V 200Ah Batt, 20A MPPT Controller Remote Power Solar System, Steel Enclosure

Description

The RemotePro® 340W Series solar outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. Vented weatherproof enclosures have generous space available inside for mounting and storing customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates. The system is equipped with MPPT temperature compensated solar charge controllers with and RS485 interface for remote monitoring with a Tycon® TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers. The outdoor enclosure is powder coated steel and has a hinged and gasket sealed lid with a padlock locking closure for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Includes a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C. The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4 in.) with the included mounting system. Batteries are a non-spillable valve regulated sealed lead acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years. The unit comes with all cabling required to connect the batteries to the controller and 20A outdoor rated cable to connect the solar panels to the controller. Features 340W remote power solution for off-grid operation Weatherproof outdoor enclosure with up to 400Ah battery Large steel enclosure Enclosure can be wall or pole mounted (pole not included) High performance sealed lead acid AGM batteries MPPT solar charge controllers w/RS845 interface Thermostatically controlled ventilation Specifications Maintenance free AGM batteries 5+ Years battery life 200Ah Battery capacity @ 12V Each 50Ah battery weighs 40.3 lbs. (18.3 kg) 340W Solar array panel Panel is 62″ L 54″ W 1.4″ Thick (1575678 35 mm) 12/24V 20A Wire terminal controller outputs 50W rated continuous power with 6 hrs. peak sun 24 hrs. Backup time @ rated power DIN rail/flat plate mounting brackets welded to door an back for internal mounts ENC-AL-24x24x16 Pole/wall mount 23.9 23.9 16.1″ (608 608 409.5 mm) enclosure Enclosure is constructed of powder coated steel 90 MPH Wind speed tolerance -22° F to 140° F (-30° C to 60°C) operating temperature 3 Year limited warranty Applications Wireless base stations Remote lighting Surveillance cameras Wireless bridge and repeaters Off-grid power Backup power Downloads Spec Sheet (PDF Download) Installation (PDF Download)
