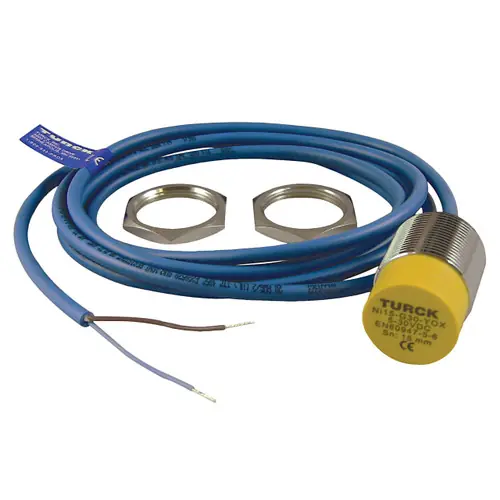

Turck NI15-G30-Y0X Inductive Proximity Sensor w/ 6 ft. of Cable

Description

The NI15-G30-Y0X inductive sensor from TURCK Inc. is a reliable and accurate solution for detecting metal objects contactless and wear-free. With a rated switching distance of 15mm, this sensor features a threaded barrel design (M30 1.5) and a chrome-plated brass housing for durability. It operates on DC power (8.2VDC nominal) with a 2-wire NAMUR output function, making it compatible with various control systems.
This sensor boasts excellent repeat accuracy (≤2% of full scale) and a hysteresis range of 1 to 10%. Its IP67 protection rating ensures resistance against dust and water, while the yellow LED indicator provides clear visual feedback on its operating state. The NI15-G30-Y0X is ideal for applications requiring precise metal detection in industrial environments.

Features

Easy Installation: Threaded barrel design with M30 1.5 threading allows for simple mounting in your application.
Reliable Sensing: Detects metal objects accurately and consistently thanks to its high-frequency electromagnetic field technology.
Durable Construction: Built with a chrome-plated brass housing and plastic active area material for long-lasting performance in various environments.
Simple Wiring: Features 2-wire, NAMUR output for easy integration into your control system.
Versatile Applications: Suitable for a wide range of industrial applications requiring contactless object detection.

Specifications

Type: NI15-G30-Y0X
ID: 4020170
Rated Switching Distance: 0.59 in. (15 mm)
Mounting Conditions: Non-flush
Secured Operating Distance: ≤ (0.81 × Sn) mm
Repeat Accuracy: ≤ 2% of full scale
Hysteresis: 1…10%
Output Function: 2-wire, NAMUR
Switching Frequency: 0.2 kHz
Voltage Nom.: 8.2 VDC
Non-actuated Current Consumption: ≥ 2.1 mA
Actuated Current Consumption: ≤ 1.2 mA
Design: Threaded barrel, M30 1.5
Dimensions: 1.73 in. (44 mm)
Housing Material: Metal, CuZn, Chrome-plated
Active Area Material: Plastic, PA12-GF30
End Cap: Plastic, EPTR
Max. Tightening Torque of Housing Nut: 75 Nm
Cable Features: Threaded barrel, M30 1.5; Chrome-plated brass; DC 2-wire, nom. 8.2 VDC; Output acc. to EN 60947-5-6 (NAMUR); Cable connection
Cable Quality: Ø 0.2 in. (5.2 mm), Blue, LifYY, PVC, 6.6 ft (2 m)
Core Cross-Section: 2 0.34 mm2
Ambient Temperature: -13…+158 °F (-25…+70 °C)
Vibration Resistance: 55 Hz (1 mm)
Shock Resistance: 30 g (11 ms)
Protection Class: IP67
MTTF: 6198 years acc. to SN 29500 (Ed. 99) 40 °C
Switching State LED: Yellow
Active Area Diameter: 1.18 in. (30 mm)
