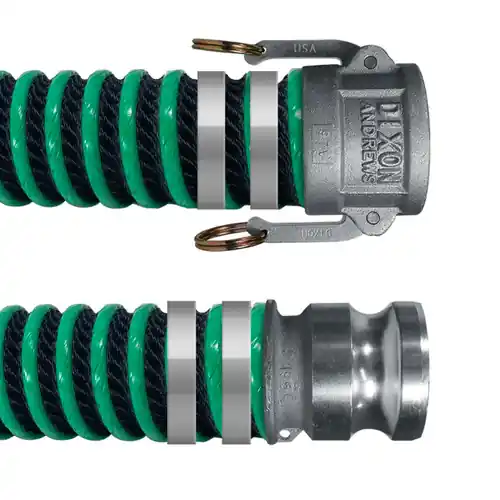

Tudertechnica Spiraltech® Fuel 3 in. Drop Hose Assemblies w/ Part C Female Coupler x Part E Male Adapter Ends

Description

Tudertechnica’s Spiraltech Fuel is a light and flexible lorry collecting hose suitable for oil and petrol, aromatic content up to 50%. Constructed with an inner tube made from nitrile rubber (NBR) and a thermoplastic helicover to protect the hose from external elements. Notes: Hose assemblies include C E (Female Coupler Male Adapter) Aluminum Quick Couplers. All assemblies are grounded and come with banding coil and 2 stainless steel band clamps per end. Features Light and flexible Reinforced with synthetic plies Wire discharges static electricity Abrasion, aging, ozone and oil resistant cover Assembled with C E (Female Coupler Male Adapter) Aluminum Quick Couplers Specifications Series: Spiraltech Fuel Type: Drop Hose Inside Diameter (ID): 3 in. (76 mm.) Hose Ends: 3 in. Female Coupler 3 in. Male Adapter (CxE) Length: 10 – 20 ft. – Other Lengths Available – Please Call 1 (800) 333-3331 for More Information Inner Tube: Nitrile Rubber (NBR), Conductive Outer Cover: Corrugated, Black with Green Outer Thermoplastic HeliReinforcement: Synthetic Plies, A/S Wire to Discharge Static Electricity Bend Radius: 5.91 in. (150 mm.) Vacuum: 11.5 PSI (0.8 bar) Working Pressure: 150 PSI (10 bar) Burst Pressure: 450 PSI (30 bar) Operating Temperature Range: -13°F to 176°F (-25°C to +80°C) Fluid Compatibility: Oil and Petrol, Aromatic Content up to 50% Norm: ISO 1307 for Dimensional Tolerances Weight: 1.54 lbs./ft. (2.30 kg/m.) Downloads Data Sheet (PDF Download) Chemical Chart (PDF Download)
