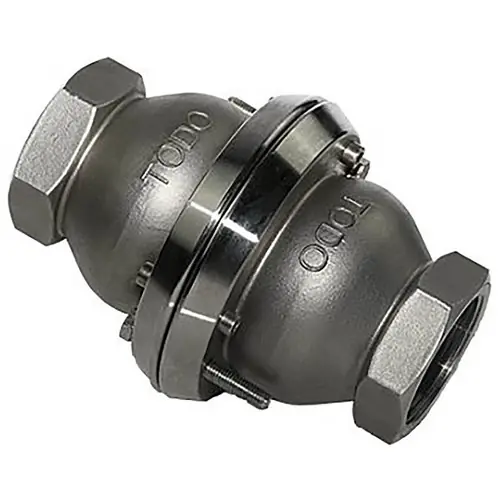

Todo-Gas NGX Series 2 in. NPT Breakaway Coupling w/ FKM 90 Shore Seal

Description

The TODO NGX Break-Away coupling is designed to eliminate equipment damage and spillages when operators fail to disengage after loading or unloading. The NGX’s break pins shear, causing the pistons to spring forward to shut either side of the connection when subject o excessive forces. This helps keep operators safe and also minimizes product losses and costly downtime.
TODO Break-Away couplings are renowned across a range of industries for their simple service and maintenance, excellent reliability, and minimal product loss on disconnect. The NGX Break-Away coupling has been expertly innovated to provide a foolproof service, ensuring total user safety and peace of mind. TODO’s NGX series offers flow optimization with the latest technology in handling and performance to bring you an industry-leading range of Safety Break-Aways.

Features

Market-leading flow rate and low-pressure drop, which allows for faster loading/unloading due to the optimized flow rates offered
Simple to retrofit onto Loading Arms
Easy On-Site Reset allows you to save time and money
Operates independently of shut off systems safely
Encapsulated shear bolts
The release function works at any angle of force
Internal redesign and new seal placement have resulted in reduced maintenance
Shielded spring design for zero flow interruption

Specifications

2 in. NPT end & outlet
Viton 90 Shore seal
316L Stainless steel
580 PSI ( 40 Bar) working pressure
-4°F to 176° F (-20° C to 80° C) working temperature range
Certified ANSI B1.20.1 threads

Applications
TODO’s NGX Break-Away coupling has been manufactured, designed, and innovated on the same line as a TODO-MATIC hose unit and is capable of withstanding the same demanding applications found on both land and offshore. Commonly used in the chemical and LPG sectors, The NGX offers a safe and high-performance solution to any application. The NGX Break-Away coupling can be used to improve safety wherever hazardous or valuable products or mediums are being transferred.

Chemical
Oil
Tank/Truck/Depots
Railcars
Containers
