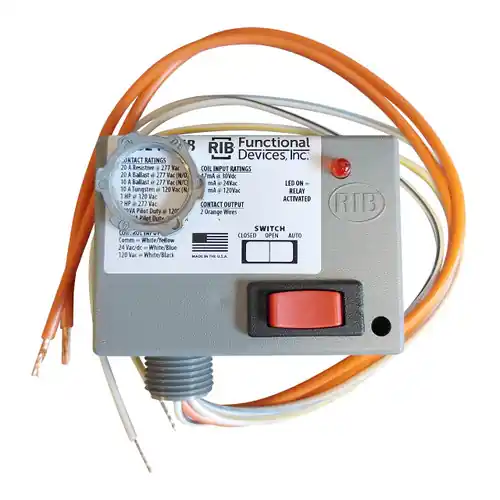

Tecalemit MRS91322 Contact Relay Assembly for Superbox

Description

Enclosed contact relay assembly is used with Tecalemit Superbox. This is not included with the 5 hose Superbofuel management system. One relay per dispense control point is needed, as an example if there will be 3 dispense points 3 contact relays are needed, or if there are 5 dispense points 5 contact relays are needed.

Specifications

Contact ratings: 20 A Resistive@ 277 Vac, 20 A Ballast @ 277 Vac (N/O), 10 A Ballast @ 277 Vac (N/C), 10 A Tungsten @ 120 vac, 1 HP@ 120 Vac, 2 HP@ 277 Vac
Control input: Comm=White/Yellow, 24 Vac/dc=White/Blue, and 120 Vac=White/Black
Contact input = 2 Orange wires.
Order with US110500800, US110500801, and US110500802.
