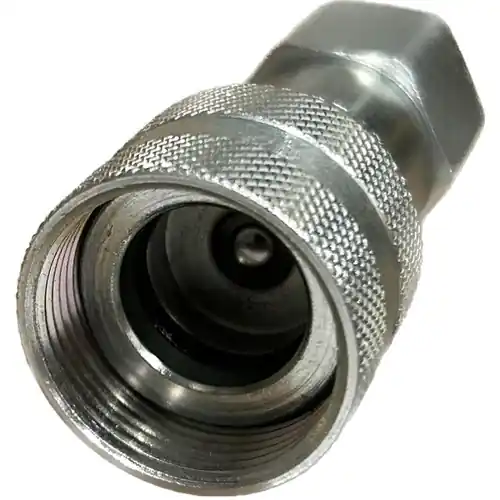

Stucchi IVHP 1/4 in. Carbon Steel Coupler 1/4 in. NPT Male, 3.1 GPM

Description

The IVHP Series Thread-To-Connect High Pressure Coupler features a threaded sleeve for connection/ disconnection. Fabricated with hardened steel and nitrile seals, it o??ers higher burst pressure than competitors. “IV-HP” is a screw to connect coupling series with ball valves. This series is intended for high pressure hydraulic applications up to 700 bar / 10152 psi. The couplings are manufactured with high resistance carbon steel with zinc plated treatment. They are interchangeable with similar couplings existing on the market and used mainly for hydraulic jacks and cylinders. Features Ball valves in hardened steel provide a good wearing resistance. Compact slim design. Simple to use. SpecificationsBrand: StucchiSeries: IVHPProduct Type: CouplerInterchange: ISO 14540Flow Rate: Up to 23 l/minMaFlow Rate (GPM): 3.1Operating Temp: -4°F / 212°F (-20°C / +100°C)Material: Carbon SteelSeal: Nitrile NBRBody Size: 1/4 in.Port Size: 1/4 in.Thread Type: NPT MalePort Option: EXT NPTMaOperating Pressure Coupled (PSI): 10150Weight: 0.254Dimensions: 2.39×1.1 in
