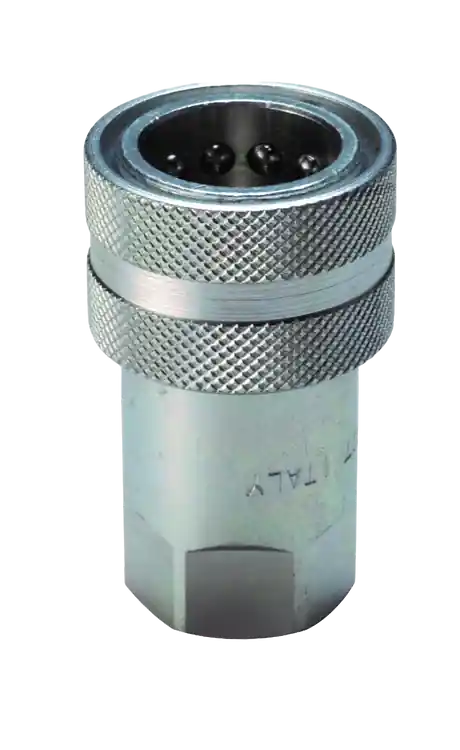

Stucchi IR 1/2 in. Female Hydraulic Quick Coupling 1/2 in. NPT, 23.85 GPM

Description

The Agriculture IR Series Hydraulic Quick Couplings offer automatic shut-off during disconnection. The IR features a variety of connection mechanisms: ball (IR), poppet (IRV), push pull (IRS) or push pull sleeve connectable under residual pressure (IRS PC). Poppet or flat-face are recommended for new applications. NOTE: Male Coupling is sold separately. Features Interchanges with Agriculture/ISO 5675 Carbon steel with zinc plating Hardened steel nipple Used anywhere automatic shut off during disconnection is required Where interchangeability with existing equipment is necessary, Agricultural equipment Specifications Brand: Stucchi Series: IR TYPE: Female Port (A): 1/2 in. Body size: 1/2 in. Port Option: NPT Product Type: Hydraulic Quick Coupling Dimensions: 2.49 × 1.5 in Spillage (ml) : 2.3 Valving style: Ball Interchange: ISO 7241 A Sealing: Nitrile NBR Connection system: Pull back the sleeve and push Disconnection system: Pull back the sleeve Material: Carbon steel Treatment: Cr3 Locking mechanism: Locking ball Disconnectable under pressure: No Thread: Female Thread Npt (Ansi B.1.20.1) Connectable under residual pressure: No Temperature: -20 / +100 °C; -4 / +212 °F Applications: Agriculture, Industry ISO DN (mm): 12.5 Max. Flow Rate (GPM): 23.85 Max. Operating pressure – coupled (PSI): 3625 Operating pressure – uncoupled (PSI): 2900 Burst pressure – coupled (PSI): 11600 Burst pressure – uncoupled (PSI): 7975 Connect force (lbf): 18 Disconnect force (lbf): 11.25 Spillage (ml): 2.3 Length (in): 2.49 Max. diameter (in): 1.5 Weight (lb): 0.54
