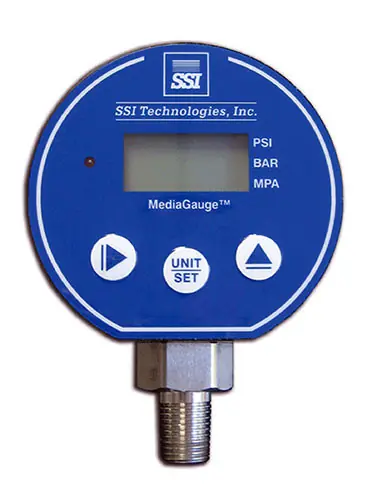

SSI MG-MD 3 in. Digital Pressure Gauge

Description

SSI MG-MD digital pressure gauges are multi-functional gauges powered by an external 8-30 Vdc power supply. They are well suited for a variety of commercial and industrial applications such as refrigeration, compressors, pumps, hydraulics, pneumatics, and waste water. Specifications SSI Model No.: MG-MD Sizes: 3″ Case Material: Black ABS Thermoplastic NEMA Rating: 4Wetted Parts: 304L & 316L Stainless Steel Monitoring & Control Outputs: 4-20mA output and a limit switch (NPN transistor output) Display: LCD Display Battery Saver Mode: MG-MD automatically powers down after 5 minutes Pressure Units: psi, bar, mpa (kg/cm²) Ranges: 5-5000psi Accuracy: ±0.25% Full Scale Connections: 22mm Heand 1/4″ – 18 NPT Process Supply Voltage: 8-30 Vdc supply Response Time: <1 ms Operating Temperature: -10°C to 60°C Storage Temperature: -20°C to 85°C Proof Pressure: 3Full Scale Burst Pressure: 10Full Scale or 15,000psi, whichever is less Downloads Product Manual (PDF Download)
