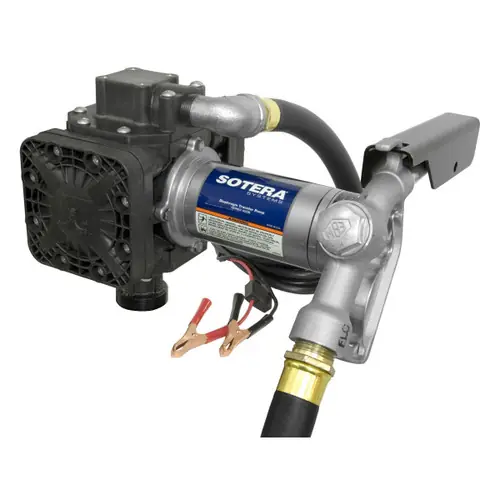

Sotera FR410B 12V DC Diaphragm Pumps – 1/4 HP Motor (Non-UL)

Description

Sotera electric diaphragm pumps offer proven technology that combines the strengths of diaphragm (membrane) pumps with the convenience, portability and efficiency of an electric motor. This combination uses less power than other conventional chemical pumps for maximum efficiency. Our unique design improves fluid handling capabilities with low shearing. It handles solids up to 2.5 mm and operated with indefinite dry run capabilities. These features make this the ideal waste oil, heavy lubricant and hydraulic fluid transfer pump. Includes Telescoping Steel Suction Tube, 1″ 12′ Hose, Manual Nozzle and Nozzle boot. Features 12V DC Motor Built in Check Valve Hytrel Diaphragms Viton Seals Glass-filled Polypropylene Housing 1/4 HP motor Thermal overload protection 15 PSI mapressure 130 Degree F matemperature 10ft Suction Lift Up to 0.1″ diameter solids Specifications Flow Rate: Up to 13 GPM Voltage: 12V DC Inlet/Outlet: 1″ NPT Bung Mount: 2″ NPT Housing Material: Glass-Filled Polypropylene Horsepower: 1/4 Power Cord Length: 15′ Amps: 10 Duty Cycle: 30 mins Certifications: UL Listed Motor (Explosion proof only) Common Applications: Standard use with Mobile Tanks, Small Tractors & Equipment, Pick-up Trucks, ATVs, Snowmobiles, Racing/Automotive, Electrical/Plumbing Contractors & More Contents 20 – 30-3/4″ Steel Telescoping Suction Pipe 1″ 12′ Hose 1″ Manual Nozzle
