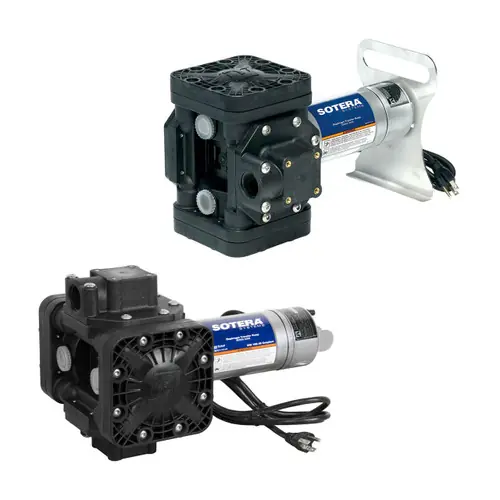

Sotera 115V AC Diaphragm Pumps – 13 GPM

Description

115VAC Electric Diaphragm Pump with reciprocating, spring driven configuration that maintains constant pressure regardless of load. Pump automatically goes neutral when the end of hose valve is shut off. Glass-reinforced polypropylene pump housing provides integrity and excellent material compatibility inside and out. The most versatile, dependable liquid transfer pump you will ever own! Mounts directly to drums, containers and storage tanks. Santoprene Diaphragms, EPDM Elastomers and 2″ bung adapter. Features Reciprocating, spring driven dual diaphragm pump design for optimal power distribution One-way valve feature won’t allow back filling of totes or drums Heavy-duty, rugged pump with a glass-reinforced polypropylene construction Optimized fluid compatibility of the santoprene diaphragm for maximum chemical and corrosion resistance Unique design improves fluid handling capabilities with low material sherr and solids handling of 1/10″ 115 volt AC motor Santoprene diaphragms EPDM seals 2″ NPT bung adapter 1″ 12′ EPDM hose Shutoff ball valve Valve retainer Telescoping polypropylene suction tube 13 GPM 15 PSI Glass-filled polypropylene housing Thermal overload protection 130ºF matemperature 10′ suction lift Up to 0.1 diameter solids Two-year warranty Specifications Flow Rate: Up to 13 GPM MaPressure: 15 PSI Voltage: 115V AC Inlet/Outlet: 1″ NPT Bung Mount: 2″ NPT Housing Materials: Glass-Filled Polypropylene Horsepower: 1/4 Amps: 1.2 Duty Cycle: 30 Mins MaWater Lift: 10′ MaOperating Temp: 130ºF Contents Pump Kit 2″ NPT Bung Adapter 1″ 12′ EPDM Hose Shutoff Ball Valve Telescoping Polypropylene Suction Tube Pump-N-Go Kit 2″ cam lock coupler 2″ 1″ NPT reducer bushing 1″ poly hose barbs SS hose clamps 3″ suction hose Norwesco valve/nozzle 1″ 12′ Suction/discharge EPDM hoses Shutoff valve Telescoping suction tube Connection fittings Motor bracket
