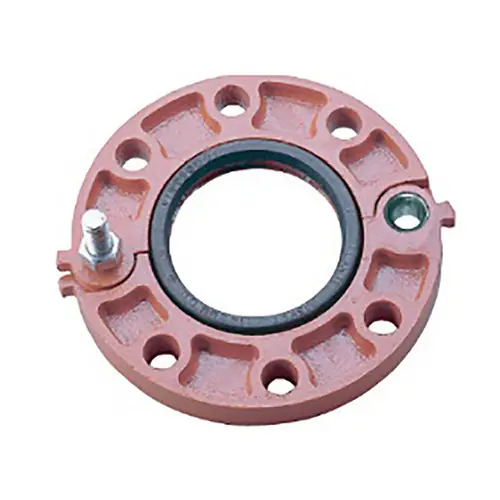

Shurjoint 7041 Grooved Flange Adapter ANSI Class 125/150, Ptd. Orange

Description

The Model 7041 Flange Adapter allows for a direct connection with ANSI class 125/150 flanges. The specially designed gasket enables the transition from a grooved system to a flanged system or component with this single flange adapter. The two-segment design provides an easy and fast installation. 2” through 12” flange adapters are supplied hinged as a single assembly. Include an EPDM rubber gasket and plated track bolts and nuts. Housing segments are supplied with standard painted finish in orange. Specifications Flange adapter ANSI Class 125/150 MaWorking pressure 300 PSI Grade E EPDM gasket MaTemperature range -30°F(-34°C) to 230°F (110°C) Ductile Iron to ASTM A536, Gr. 65-45-12 and or ASTM A395, Gr.65-45-15, min. tensile strength 65,000 PSI Plated hebolts conforming to ASTM A307 with henuts. (2 nuts and bolts are supplied). Bolts and nuts for the flange connection to be supplied by installer. For potable water service to 180°F(82°C) Also good for services for water with acid, water with chlorine, deionized water, seawater and wastewater, dilute acids, oil-free air and many chemicals Not recommended for petroleum oils, minerals oils, solvents and aromatic hydrocarbons 10 Year limited warranty Downloads Product Manual (PDF Download)
