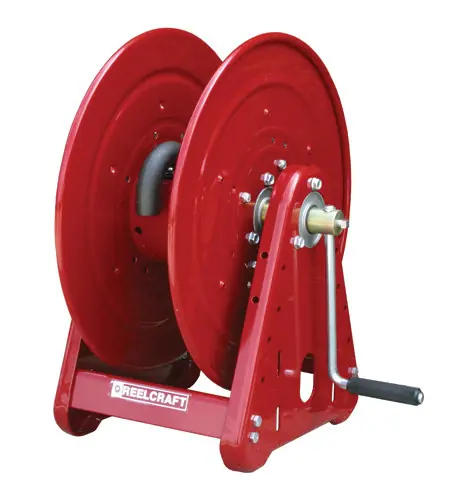

Reelcraft Series 30000 Hand Crank Hose Reel – Reel Only – 1/2″ x 200′

Description

Reelcraft Series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.Features Gooseneck can easily be removed to simplify adding long lengths of hose to the reelFull flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service lifeT-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reelAdjustable spool rotation drag that eliminates hose backlashPermanently lubricated dual main bearingsVibration-proof self-locking fasteners to ensure assembly integrity Individually powder coated components offer the maximum protection from premature corrosionNickel-plated swivel with four “O” ring optionsAll bolted construction – no weldsReel only – hose not included SpecificationsPart Number: CA32112 LSeries: 30000Weight (lbs): 46Hose I.D. (in): 1/2″Hose O.D. (in): 0.75Hose Length (ft): 200Pressure (PSI): 1000Inlet (in): 1/2 NPT(F)Reel Outlet (in): 1/2 NPT(F)Hose Included: NoMaTemperature (F): 250Seal Type: Buna NSwivel Material: SteelShaft Material: SteelGooseneck Material: Ductile Iron DimensionsDownloadsSpecification Sheet (PDF Download)Product Manual (PDF Download)
