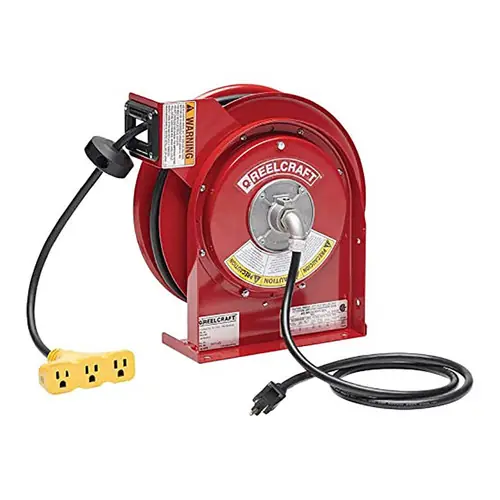

Reelcraft L 4000 Series Premium Duty Triple Outlet Power Cord Reel, 12 AWG, 45 Ft.

Description

The Reelcraft Series L4000 NEMA 5-15R power cord reel includes a 15 amp molded triple tap. The reel is supplied with a 45 foot pigtail that includes a NEMA 5-15P inlet straight blade plug. Declutching arbor virtually eliminates the possibility of spring damage due to reverse winding. For indoor, non-weather tight applications only. Note: Reel is shipped in the top wind position Features Cord: 45 ft. 12/3 SJEOOW cord with triple tap Reinforced steel: The robotically welded steel base offers maximum strength and consistent quality Heavy-duty collector ring: A robust collector ring assures maximum conductivity current flow Positive Locking: Includes a reliable speed latch that allows locking of the spool in two positions per rotation Long-life drive spring: Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life Quality finish and corrosion resistant: Individually powder coated components offer the maximum protection from premature corrosion Specifications Triple tap outlet end Wire: 12 AWG Cord Length: 45 ft. Volts: 125V Amps: 15  3 Conductors Cord Type:  SJEOOW NEMA 5-15P Inlet straight blade plug UL/CSA Approved Made in the USA Downloads Specifications (PDF Download) Instructions (PDF Download) Dimensions (PDF Download) Mount Applications (PDF Download)
