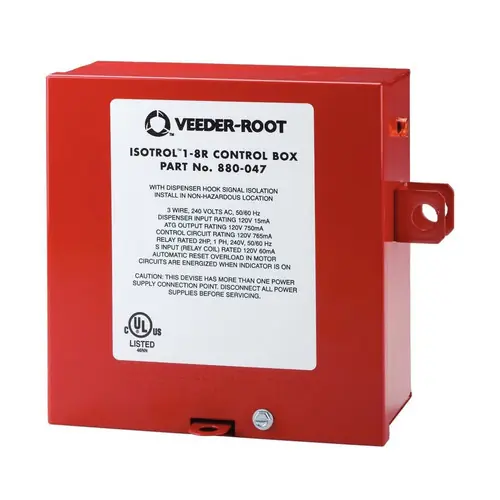

Red Jacket® ISOTROL™ 1-8 Control Box, 120V

Description

The Red Jacket® ISOTROL™ 1-8 Control Bois the most versatile dispenser handle signal isolation system available. It provides a means to remove all external voltage sources, including feedback, during periods of maintenance and service of the dispensing equipment to meet NEC requirements.
The Red Jacket® ISOTROL™ 1-8 Control Boisolates handle signals between each dispenser and protects against wiring shorts and phasing issues. It is available with or without a built-in 30-amp 2HP rated relay.

ISOTROL™ 1-8 units without the relay are designed for use with the TLS-450PLUS or another component for motor control – IQ, standard control boor three phase magnetic starter and will accept up to eight individual dispenser signals.
ISOTROL™ 1-8R units with the relay bypass an ATG to activate one pump and will accept up to eight individual dispenser signals. They can also be utilized to activate a second pump in manifolded applications.

Note: Each configuration also has a 240VAC international equivalent. Please call 1-800-333-3331 for more information.

Features

Isolates the handle signals between each dispenser
Isolates and protects individual dispensers from wiring shorts or phasing issues
Isolates and protects technicians from dangerous feedback during service
Ready interface with the Red Jacket® IQ Control Boand/or the TLS-450PLUS
Compliant with NEC requirements for handle isolation
Accepts up to eight individual dispenser signals
If ordered without relay, it must be used with another component for motor control
Dedicated Automatic Tank Gauge (ATG) line leak output and coil for easy compatibility with Pressurized Line Leak Detection (PLLD)
Terminals are labeled for easy wiring and compatibility
May be used with all Red Jacket and competitive submersible turbine pumps
Easily retrofitted to existing locations

Specifications

Dimensions: Type 1 enclosure, 6 in. 6 in. 4 in.
DISP Inputs: 10 mA @120V or 240V 50/60 Hz
Control Circuit: 15 mA @ 120V 50/60 Hz or 240V 50/60 Hz
ATG Output: 750 mA @ 120V or 240V 50/60 Hz
Control Relay: 30A DPST 120/240VAC 50/60 Hz
Terminals:

250V
14-28 AWG
10-18 AWG Main
