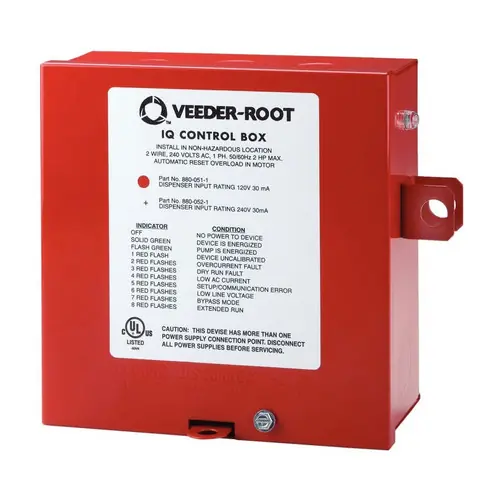

Red Jacket® 008800511 IQ Control Box, 120V

Description

The Red Jacket® IQ Control Bois a smart STP controller solution that provides operators with simplified pump management and unparalleled protection against downtime. IQ is the most reliable method to manage and ensure maximum fuel flow during peak fueling times, while improving the longevity of the submersible pump motor.

Features

Protect: Minimizes downtime with comprehensive motor protection and seamless backup to extend motor life and boost bottom-line profits.

Protects wiring and controls from locked rotor or high current
Monitors site power conditions to ensure long motor life and uninterrupted fueling
Single, multi-colored LED readout signals warning and shutdown conditions
Automatically resets after dry run condition when fuel is added to the tank to minimize downtime
Warns site personnel of conditions impacting the ability to fuel

Stage: Monitors site demand and stages additional pumps to ensure optimal fuel flow at all demand conditions.

Enables demand-based staging of multiple pumps to control fuel flow based on changing fuel demand

Connect and Control: Manages STP activation based on user-selectable operation settings and is compatible with the Red Jacket® ISOTROL 1-8 Control Box, Veeder-Root® TLS-450PLUS, and comparative 3rd party dispenser hook isolation or data hub solutions.

Manages STP activation based on user-selectable operation settings
Ready interface with Red Jacket’s ISOTROL 1-8 isolation system and the TLS-450PLUS ATG
Easy jumper switches control operation settings
Single press and hold button for easy calibration. No need to lift dispenser handle to activate the pump for calibration

Service and Installation

Sized for easy retrofit installations
Models available with integrated capacitor housing for streamlined service
Easy-to-use wiring terminal with familiar labeling
Durable 30-amp power relay is socket installed for easy service and repair. Service life is rated over one million cycles
Works with all Red Jacket and competitive single-phase submersible turbine pumps

Specifications

Type: IQ Control Box, 120V
Part: 008800511
Dimensions (no capacitor): Type 1 enclosure, 6 in. 6 in. 4 in.
Handle Voltage: 115v or 230 v (switch selectable)
Power Relay: 30-amp 250 VAC 50 or 60 Hz DPST, 2HP
Terminal Lug: Size 10-16 AWG wire
Alarm (Warning Condition):

Low line voltage
Low AC current
Network/communication
Bypass mode
Uncalibrated device
Extended run

Alarm (Hard Fault Condition):

Dry run
Over current
