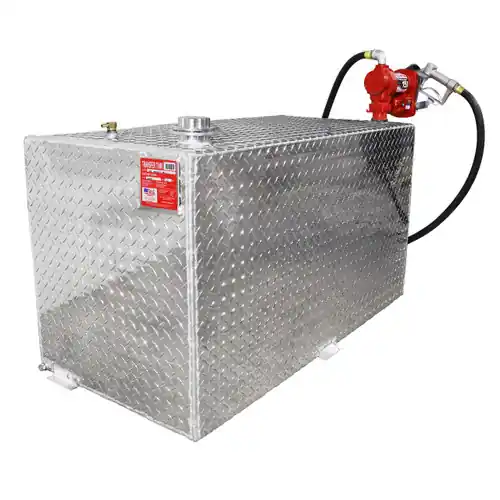

RDS Manufacturing 113 Gallon Aluminum Rectangle Transfer Tank w/ Fill-Rite 12V DC 15 GPM Fuel Transfer Pump

Description

RDS Manufacturing 113 Gallon Aluminum Rectangle Transfer Tank w/ Fill-Rite 12V DC 15 GPM Fuel Transfer Pump
The RDS Manufacturing 113 Gallon Aluminum Rectangular Transfer Fuel Tank is a high-performance, DOT-approved solution for transporting diesel, gasoline, or aviation fuel. Proudly made in the USA, this tank is constructed from heavy-duty, rust-resistant 0.125-inch aluminum and features fully welded seams for superior durability. Each tank undergoes 100% pressure testing to ensure leak-free performance. Designed with built-in baffles to minimize fuel sloshing and a vehicle rollover safety valve, this tank offers both safety and reliability. Ideal for commercial and industrial use, it includes a 2-inch female pipe thread coupling for a manual or 12V transfer pump (sold separately) and a 3/8-inch NPTF(F) drain plug for easy maintenance.
The Fill-Rite FR1210H 12V DC Fuel Transfer Pump is a trusted industry-standard solution for transferring gasoline, diesel fuel, and kerosene. Designed for durability and portability, this pump delivers a flow rate of up to 15 GPM (57 LPM) while maintaining a low amp draw, making it ideal for mobile fueling applications that rely on DC power sources.
This complete pump package includes a 12-foot static wire hose and a manual dispensing nozzle, offering reliable, hands-on control during operation. Whether you’re servicing vehicles in the field or refueling equipment onsite, the FR1210H is engineered for dependable performance in demanding environments.
Note: The FR8 pump is lockable, recommended lock to use is Master Lock 140DLH
Note: Transfer tanks have a drain plug and can be used to gravity feed diesel.
Attention: Adhere to these guidelines before installation. Failure to follow these guidelines will result in voiding your warranty.

The fill cap location and pump location cannot be swapped.
Do not install risers between the fuel tank fitting and the pump.
Do not use extension pipes to raise the height of the transfer pump.
Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used. The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc.

Features
Tank Features

Heavy-Duty Aluminum Construction: Built from 0.125-inch thick aluminum that resists rust and corrosion for long-lasting performance.
DOT Approved for Fuel Transport: Certified for safe transport of diesel, gasoline, or aviation fuel.
Fully Welded and Pressure Tested: Every tank is 100% pressure tested and features fully welded seams to prevent leaks.
Built-In Safety and Stability: Includes internal baffles to reduce fuel movement and a rollover safety valve for added protection.
Pump-Ready Design: Equipped with a 2-inch female pipe thread coupling compatible with manual or 12V transfer pumps (sold separately).

Pump Features

Up to 15 GPM
Explosion-proof
1/4 HP motor with permanent magnet and ball bearings
Cast bronze rotor with bronze rotary vanes
Automatic bypass valve
Built-in strainer
2 in. threaded base for tank mounting
Pump may be padlocked
No foot valve required
Rain-proof
Steel telescoping suction tube
Compatible with diesel, gasoline, kerosene, E15, biodiesel up to B20
Heavy-duty cast iron construction
Includes a two-wire battery cable
12 ft. hose with static wire
Limited lifetime warranty

Specifications
Tank Specifications

Capacity: 113 Gallon
Dimensions: 48 in. L 23 3/4 in. W 26 in. H
Finish: Diamond Plated
Material: Aluminum
Shape: Rectangle
Weight: 115 lbs. (Assembled)

Pump Specifications

Flow Rate: Up to 15 GPM
Voltage: 12V DC
Inlet: 1 in.
Outlet: 3/4 in.
Bung Mount: 2 in. NPT
Housing Material: Cast iron
Horsepower: 1/4
Power Cord Length: 18 ft.
Amps: 20
Duty Cycle: 30 Min
Package Contents:

Fill-Rite FR1210H 15 GPM 12 Volt Pump
Fill-Rite 20 – 34-3/4 in. Steel Telescoping Suction Pipe
3/4 in. 12 ft. Hose w/ S…
