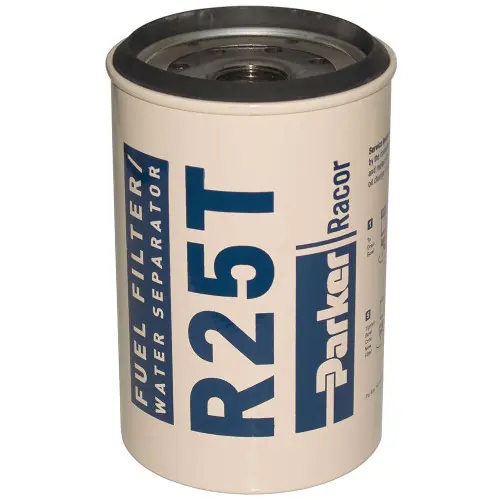

Racor 200 Series Low Flow Diesel Replacement R25T Element – 10 Micron

Description

200 Series Fuel Filter/Water Separators The 215R, 230R, and 245R fuel filter/water separators come standard with an integral priming pump and a new see-thru contaminant bowl which can operate in applications up to 30 PSI. Another design upgrade is the optional 200-watt in-bowl heater for colder operating conditions. Applications include light-duty and medium-duty trucks and vehicles, construction, agricultural, and other diesel-powered equipment.   Specifications Number of Ports: 3 Port Size: 1/4″ – 18 NPTF (SAE J467) MaOperating Pressure: 30 PSI Integral Primer Pump: Yes Drain Type: Positive Seal Bowl Type: Metal Heater: Yes Ambient Temp Range: -40°F to 255°F MaFuel Temp: 190°F Cold Pressure Drop 30 psi / 207 kPa Features Die-cast aluminum unitized head ports Mounting holds spaced at 1.4″ (35.6 mm), for 1/4″ bolt 2 piece powder-coated aluminum construction Filters gasoline, diesel, and gasoline/oil blended fuels Compact design Heavy duty construction Easy to service
