Description

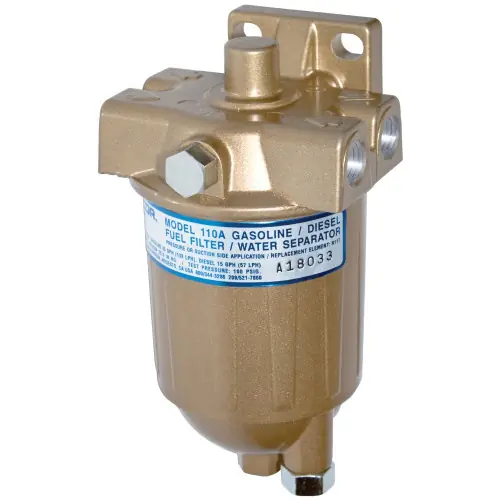

110A – Maximum Protection in Minimum Space The 110A is designed for fuel-injected gasoline engines with high working pressures and also can be used on diesel engines. A metal housing is standard. Typical applications include smaller diesel and gasoline engines used in generator sets, pressure washers, and other equipment. It’s compact size fits tight mounting locations and multiple ports offer installation flexibility.Port Size: 1/4″ – 18 NPTF (SAE J467) Flow Rates (Gasoline): up to 35 GPH Flow Rates (Diesel): up 15 GPH Clean Pressure Drop: 0.15 PSI MaPressure: 100 PSI SpecificationsFuel Ports: 4 Port Size: 1/4″ – 18 NPTF (SAE J467) Flow Rates (Gasoline): up to 35 GPH Flow Rates (Diesel): up 15 GPH Clean Pressure Drop: 0.15 PSI MaPressure: 100 PSI Integral Primer Pump: No Replacement Element: R11 Drain Type: Positive Seal Heater: No Ambient Temp Range: -40°F to 255°F MaFuel Temp: 190°F FeaturesDie-cast aluminum unitized head ports Mounting holds spaced at 1.4″ (35.6 mm), for 1/4″ bolt 2 piece powder-coated aluminum construction Filters gasoline, diesel, and gasoline/oil blended fuels Compact design Heavy duty construction Easy to service
