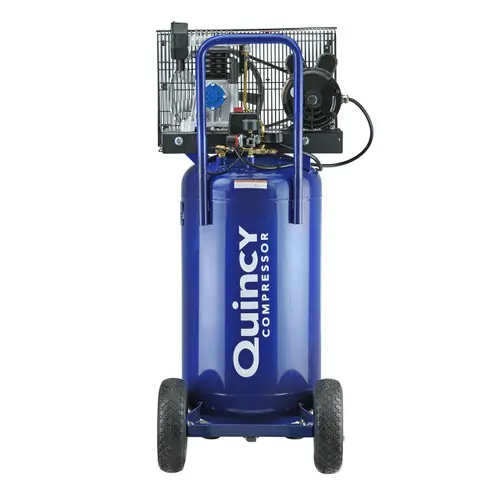

Quincy Compressor Q12124VPQ SS Series Portable Single-Stage 24 Gallon Air Compressor, 2HP, Vertical, 115V 1-Phase

Description

The Q12126VPQ is a portable 26 gallon single stage reciprocating air compressor. This vertical air compressor is equipped with an oil-lubricated pump and a cast iron pump housing and is designed to provide in excess of 10,000 hour -or more- pump life. This model is available in electric-powered versions and also includes low RPM for cool, quiet operation. A single-stage air compressor works by drawing air into the compressor’s cylinder, where it is then compressed with a single stroke of a piston and sent to a storage tank. Single Stage series compressors feature a cast iron cylinder, crankshaft and valve plate for strength and durability. The aluminum head and design help to dissipate heat to keep the compressor running as cool as possible for longer life. Single Stage piston compressors are 100% factory tested at full pressure and shipped with ISO-150, SAE 40 weight lubricant (Quin-CIP 40 W Non Detergent Oil)

Features

Single-Stage
Cast iron cylinder & crankshaft
Fully enclosed belt guard
Start/stop pressure switch
Start up time 3.3 minutes
Aluminum head
Made in the USA

Specifications

Portable
Vertical tank
24 Gallon tank vertical tank with 1/4 in. NPT outlet
Splash oil lubricated
Fuel type=Electric
2 HP
MaPSI 135
8.3 CFM@ 40 PSI and 7.1 CFM@ 100 PSI
115 Volt
Single Phase
50% Duty cycle
Foam pre-filter
ASME safety valves
Manual tank drain
Standard 1 Year warranty, call 800-333-3331 for details on the No Bull Extended 3 Year pump, 2 Year labor Warranty Option, EWK-1.
