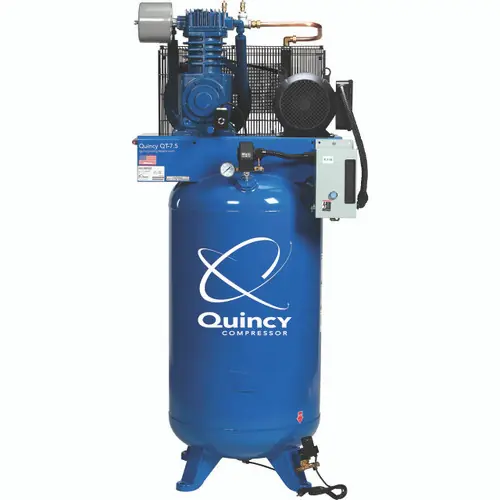

Quincy Compressor 271CS80VCB23 QT Pro Stationary Two-Stage 80 Gallon Air Compressor, 7.5 HP, Vertical, 230V 1-Phase

Description

The reciprocating Quincy QT™ is a standard duty air compressor is leading the industry with the most CFM per brake horsepower, ensuring the powerful, reliable performance you demand. The QT™ ensures more air while consuming less energy in the production process. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s unique valve design provides the highest volumetric efficiency available.
The Quincy QT™ is equipped with a wide range of standard features that ensure rugged, dependable performance and maximum energy efficiency. The aluminum cylinder head is designed for cooler operating temperatures and a longer lifespan. The large, balanced cast-iron flywheel features an angled design that keeps the entire compressor cool. The interstage intercooler effectively dissipates heat between the two compression stages. The high performance rings minimize oil carryover, while the balanced, counterweight crankshaft is designed for highly efficient performance . Includes industrial-grade bearings that are built to handle the heavy demands of your air compression applications, as well as two-piece connecting rods that provide easy serviceability. Graphite head gaskets and cylinders ensure superior sealing integrity

Features

Balanced counter-weighted crankshaft assures smooth, trouble-free operation
High-efficiency finned tube intercooler provides maximum cooling & increased valve life. Eliminates carbon build up in the head and increases valve life.
2-piece connecting rods for less moving parts & minimized downtime
Heavy-duty industrial capacitor start motor with built-in thermal overload. Runs at a slower RPM, runs cooler and cost less to operate.
UL & CSA approval on all electrical components
80-Gallon ASME certified air tank & pressure relief valves with manual drain for routine draining and rust prevention
Vertical tank saves space, provides easy access
Made in the USA

Specifications

230V AC 1-Phase motor, 40 amp.
Magnetic starter w/pressure switch control
Start up time 5.6 minutes
100% Duty cycle
80 amp breaker recommended
7.5 HP engine
80 Gallon tank with 3/4 in. ball valve outlet
22.6 CFM@175 PSI
Working pressure 145-175 PSI
Solid cast iron two-stage pump
175 PSI max
Use Quin-CIP 30 W Non Detergent Oil
Premium Polyester filter
Oil sight glass
Manual drain
Belt drive
3/4 in. Outlet
Oil splash lubricated
ASME, UL, CSA certified
Standard 1 Year warranty, call 800-333-3331 for details on the No Bull Extended 3 Year pump, 2 Year labor Warranty Option, EWK-3.
