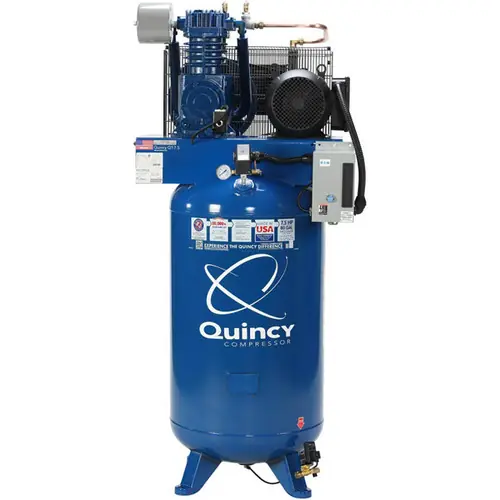

Quincy Compressor 271C80VCB23M QT Max Stationary Two-Stage 80 Gallon Air Compressor, 7.5 HP, Vertical, 230V 1-Phase

Description

The reciprocating Quincy QT™ is a standard duty air compressor is leading the industry with the most CFM per brake horsepower, ensuring the powerful, reliable performance you demand. The QT™ ensures more air while consuming less energy in the production process. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s unique valve design provides the highest volumetric efficiency available.
The Quincy QT™ is equipped with a wide range of standard features that ensure rugged, dependable performance and maximum energy efficiency. The aluminum cylinder head is designed for cooler operating temperatures and a longer lifespan. The large, balanced cast-iron flywheel features an angled design that keeps the entire compressor cool. The interstage intercooler effectively dissipates heat between the two compression stages. The high performance rings minimize oil carryover, while the balanced, counterweight crankshaft is designed for highly efficient performance . Includes industrial-grade bearings that are built to handle the heavy demands of your air compression applications, as well as two-piece connecting rods that provide easy serviceability. Graphite head gaskets and cylinders ensure superior sealing integrity. Maunit includes : Air-cooled after cooler, Automatic tank drain, low oil level switch and magnetic starter

Features

50,000 hour -or more- pump life; 5 year pump warranty
1725 rpm industrial motor to continuously run your business
Special low oil protection & extra capacity oil reserve extends the life of the splash lubricated, cast-iron pump
High efficiency finned intercooler reduces air temperature for maximum performance
2-Piece connection rods have fewer moving parts increasing reliability
Magnetic starter provides thermal overload protection
Made in the USA

Specifications

230V AC 1-Phase motor 40 amp w/magnetic starter
Start up time 5.6 minutes
80 amp recommended breaker
7.5 HP engine
Fuel type= Electric
Solid cast iron two-stage pump
22.6 CFM@175 PSI
100% Duty cycle
Splash oil lubricated
Use Quin-CIP 30 W Non Detergent Oil
Oil sight glass
Premium Polyester filter
Belt Drive
Low oil shut-off
80 Gallon vertical tank with 3/4 in. ball valve outlet
Electronic drain valve
ASME, UL, CSA certified
Standard 1 Year warranty, call 800-333-3331 for details on the No Bull Extended 3 Year pump, 2 Year labor Warranty Option, EWK-3.
