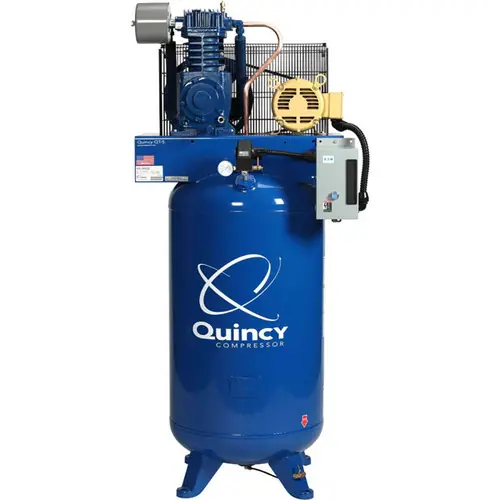

Quincy Compressor 253DS80VCB46 QT Pro Stationary Two-Stage 80 Gallon Air Compressor, 5 HP, Vertical, 460V 3-Phase

Description

The reciprocating Quincy QT™ is a standard duty air compressor leading the industry with the most CFM per brake horsepower, ensuring the powerful, reliable performance you demand. The QT™ ensures more air while consuming less energy in the production process. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s unique valve design provides the highest volumetric efficiency available.
The Quincy QT™ is equipped with a wide range of standard features that ensure rugged, dependable performance and maximum energy efficiency. The aluminum cylinder head is designed for cooler operating temperatures and a longer lifespan. The large, balanced cast-iron flywheel features an angled design that keeps the entire compressor cool. The interstage intercooler effectively dissipates heat between the two compression stages. The high performance rings minimize oil carryover, while the balanced, counterweight crankshaft is designed for highly efficient performance . Includes industrial-grade bearings that are built to handle the heavy demands of your air compression applications, as well as two-piece connecting rods that provide easy serviceability. Graphite head gaskets and cylinders ensure superior sealing integrity. Made in the USA.

Specifications

Heavy-duty industrial motor
2 cylinder pump design
Industrial-duty general purpose mounted and wired magnetic starter w/ pressure switch control
Start up time 7.4 minutes
145-175 working PSI
17 CFM@ 90 & 175 PSI
175 maPSI
Less than 5 PPM oil carry-over rating
460 Volts
50,000+ Pump life hrs.
100% Duty cycle
80 Gallon vertical tank with 3/4 in. ball valve outlet
Splash oil lubricated
Use Quin-CIP 30 W Non Detergent Oil
Premium Polyester filter
Manual pump
Cast iron pump
100% duty cycle
UL & CSA approval on all electrical components
ASME-coded pressure relief valves and tanks
Standard One Year warranty, call 800-333-3331 for details on the No Bull Extended Warranty Option.
