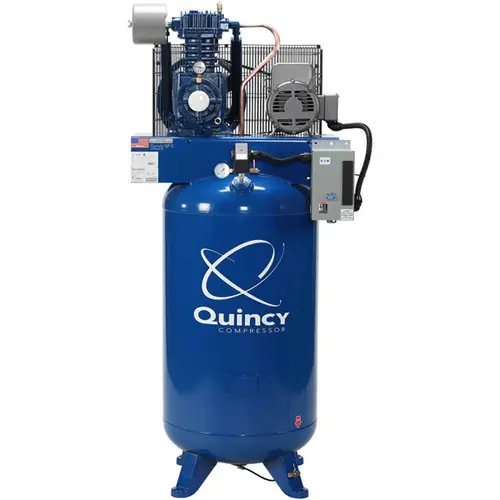

Quincy Compressor 251CS80VCB23 QT Pro Starter Stationary Two-Stage 80 Gallon Air Compressor, 5 HP, Vertical, 230V 1-Phase

Description

The reciprocating Quincy QT™ is a standard duty air compressor leading the industry with the most CFM per brake horsepower, ensuring the powerful, reliable performance you demand. The QT™ ensures more air while consuming less energy in the production process. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s unique valve design provides the highest volumetric efficiency available. The Quincy QT™ is equipped with a wide range of standard features that ensure rugged, dependable performance and maximum energy efficiency. The aluminum cylinder head is designed for cooler operating temperatures and a longer lifespan. The large, balanced cast-iron flywheel features an angled design that keeps the entire compressor cool. The interstage intercooler effectively dissipates heat between the two compression stages. The high performance rings minimize oil carryover, while the balanced, counterweight crankshaft is designed for highly efficient performance . Includes industrial-grade bearings that are built to handle the heavy demands of your air compression applications, as well as two-piece connecting rods that provide easy serviceability. Graphite head gaskets and cylinders ensure superior sealing integrity..

Features

100% Duty cycle splash lubricated
Engineered for efficiency and lower operating costs
Produces more compressed air at a lower horsepower
High performance cast iron QT-5 belt drive pump
Industry-leading 50,000+ hour pump life
Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
2-Cylinder cast-iron design
Cast-iron cylinders maintain rigid tolerances for high efficiency
Industrial-class bearings ensure extended piston life
Graphite cylinder and head gaskets for positive sealing and improved performance
Large Balanced Cast Iron Fly Wheel
Smoother operation, angled for maximum cooling
Balanced counter-weighted crankshaft assures smooth, trouble-free operation
High-Efficiency finned tube intercooler provides maximum cooling & increased valve life. 2-piece connecting rods for less moving parts & minimized downtime.
Heavy-duty capacitor start motor with built-in thermal overload runs at a slower RPM, runs cooler and costs less to operate. UL & CSA approval on all electrical components.
80-Gallon ASME certified air tank & pressure relief valves with updated 3-leg air receiver with manual drain.

Specifications

5 HP engine
Start up time 7.4 minutes
Two-stage pump
Solid cast iron pump
17.2 CFM @ 175 PSI
Ma175 PSI
Oil sight class
Premium Polyester filter
Belt drive
Oil splash lubricated
Use Quin-CIP 30 W Non Detergent Oil
230 V AC 1-Phase Motor
28 amp
60 Amp recommended breaker
80 Gallon vertical tank with 3/4 in. outlet
Fuel type= Electric
ASME, UL, CSA certified
Standard 1 Year warranty, call 800-333-3331 for details on the No Bull Extended 3 Year pump, 2 Year labor Warranty Option, EWK-3.
