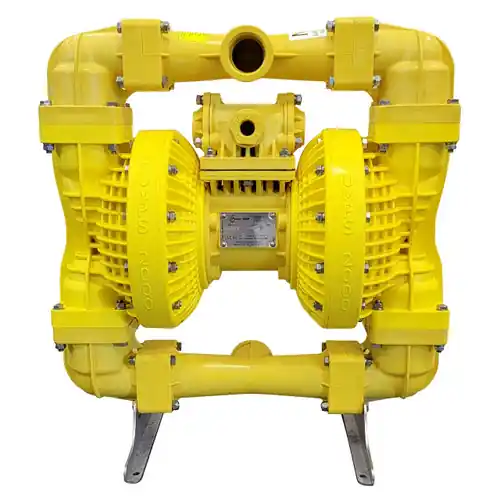

Pumps 2000 Yellow P40BY02AS 1 1/2 in. Nylon Diaphragm Pump, Santoprene Balls

Description

Pumps 2000 Yellow Series air operated double diaphragm pumps are ATEX certified pumps, suitable for general water and slurry conditions, salt water, some low PH acid applications, applications requiring food grade approved materials of construction and more. The Yellow series has an ATEX M2 rating. The pump housing is made of a nylon blend and the internal elastomers are santoprene. Features Tested at 100 psi supply air pressure (Not to exceed 125 psi) 43lbs / 19.5kg Pump Weight Passes suspended solids up to .55″ / 14mm diameter Maximum flow rate of 0-117 gpm / 443 L/min No Lubrication Required Self Priming Specifications Size: 1 1/2 in. Connection Type: NPT Fluid Compatibility: Slurry, Salt Water, Paint, Chemicals (Mild), Fuel Oil Flow-Rate: 0-117 GPM Air Supply: Tested at 100 PSI (Not to exceed 125 PSI) Body Material: Nylon Diaphragms: Santoprene Balls: Santoprene Seats: Santoprene Downloads Specification Sheet (PDF Download)
