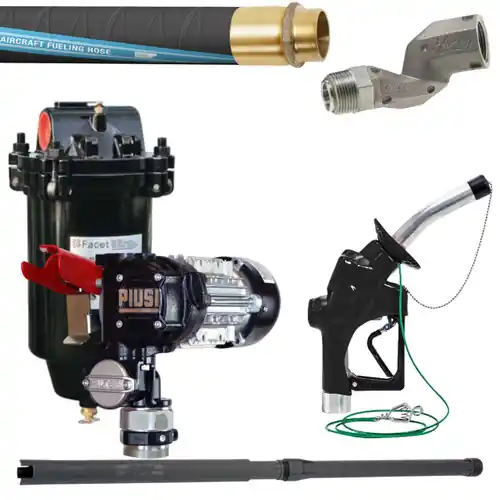

PIUSI Panther EX 72 120V AC 20 GPM Aviation Fuel Transfer Pump Package w/ Filter

Description

PIUSI Panther EX 72 120V AC 20 GPM Aviation Fuel Transfer Pump Package w/ Filter The PIUSI Panther EX 72 Avio Fuel Transfer Pump Package with integrated Facet VF-21SB filtration system is a specialized aviation fueling solution designed for precision, safety, and reliability. Operating at 120V AC and delivering a consistent flow rate of 20 GPM, this pump is ideal for low-volume refueling of business and private aircraft using AVGAS or Jet A-1. The pump features a grooved rotor with spring-loaded vanes for continuous duty, a magnetic switch for enhanced safety, and an easy-lock spin collar for secure installation. The included nozzle offers automatic shut-off functionality and a built-in 100 mesh stainless steel filter for clean fuel delivery. The Facet VF-21SB filter housing, equipped with a 1-micron coalescer cartridge, effectively removes water and particulates, ensuring superior fuel purity. UL certified and constructed with aviation-grade materials, this package delivers dependable performance in demanding environments.FeaturesContinuous Duty Pump Operation: Grooved rotor and spring-loaded vanes support uninterrupted fueling.Magnetic Safety Switch: Enhances control and safety during fuel transfer.Easy-Lock Spin Collar: Provides secure and quick installation.Automatic Shut-Off Nozzle: Prevents overfilling by stopping flow when tanks are full.Integrated Fuel Filter: 100 mesh stainless steel filter and 1-micron coalescer cartridge ensure clean fuel.Color-Coded Grip Guards: Red grip for AVGAS, black grip for Jet A-1 applications.Robust Filter Housing: Epoxy-coated carbon steel body with swing bolt closure for easy maintenance.Certified for Aviation Use: UL listed for aviation fueling and ATEX certified for flammable environments.SpecificationsCertification: UL CertifiedFlow Direction: Outside to InFlow Rate: 20 GPMFrequency: 60 HzGasket: Nitrile RubberInlet: 1 in. / 25.4 mm NPT (Pump), 1 1/2” NPT (Filter)Lever: One piece contoured steelMaDifferential Pressure: 75 PSIMaOperating Temperature: 240°F (115°C)Micron Size: 1Nominal Length: 9 in. (230 mm)Outside Diameter: 6 in. (152 mm)Packing: Double o-ring seal protected by fiber reinforced Teflon®PH Range: 5 to 9Power Supply: 120V ACRotor Type: GroovedSeals: FluorocarbonSwitch Type: MagneticVane Type: Spring LoadedVent/Drain: Brass PetcocksKit ContentsHI1149812BLK: Hewitt Osprey Aviation Over Wing Fueling NozzlePIF00588000: EX 72 Avio 120V AC 20 GPM Fuel Transfer Pump – AviationAGYJETRANGER100X20MXM: Continental ContiTech Jet Ranger™ 1 in. 300 PSI Aviation Fueling Hose Assembly w/ Brass Male NPT EndsPIF00559000: K150 Avio 1 in. NPT High Capacity Mechanical Flow Meter (Gallons) – AviationPFVF21SB: Facet Fuel-Gard VF-21SB In-Line Filter HousingPFCC217: Facet Fuel-Gard VF-21SB Coalescer (Air/Gas) Separator Filter Cartridge – 1 Micron
