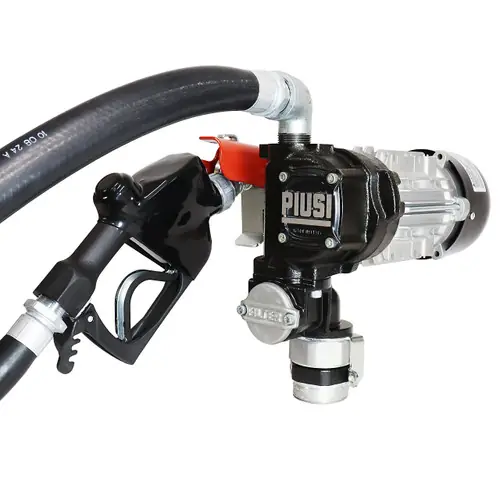

PIUSI Panther EX 56 Fuel Transfer Pump w/ 1 in. Automatic Nozzle – 18 ft., 16 GPM, 120V AC

Description

PIUSI Panther EX 56 Fuel Transfer Pump w/ 1 in. Automatic Nozzle – 18 ft., 16 GPM
PIUSI Panther EX 56: The new PANTHER EX pump series is designed to meet the most demanding North American customers who need robust and reliable pumps capable of delivering unmatched performance. Capable of providing the highest flow rate of its class, it outperforms even while using a range of accessories. The PANTHER EX is available in a 16 GPM (Panther EX56) and 20 GPM (Panther EX72) versions. Both models are designed to deliver their true flow at the nozzle at high pressures (25PSI), allowing them to be used on an array of tank sizes and configurations.
Automatic Nozzle: The automatic farm nozzle with hook is designed for dispensing Unleaded fuel from an AC or DC transfer pump. This Nozzle is can be used on either a stationary pump system with an above ground tank or a transfer style tank in a pick-up truck with a DC pump set up.
Aggie Gas™ – With Static Wire: Continental ContiTech Aggie Gas Farm hose is a multi-use Hose for dispensing gasoline, diesel, kerosene and petroleum oils from Transfer and barrel type pumps. It is ideal for agricultural, construction and industrial service.

Features
PIUSI Panther EX 56

Exceptional Flow-Rate: Available in 16GPM and 20GPM models, the Panther EX utilizes a grooved rotor and spring-loaded vanes to highest flow rates in its class, even at high pressures (25 PSI), ensuring efficient fuel transfer for various tank sizes and configurations.
Continuous Duty: With a fan-cooled motor the Panther EX pumps can be run continuously for large fleet operations.
Built to last: Made with high-quality materials, the Panther EX withstands the harshest conditions, guaranteeing long-term durability.
Quick Installation: Innovative Easy Lock tank connection design allows for quick and easy setup, saving you time and effort.
Application: Explosion proof, Fleet, Off-Road
Fluid: Diesel, Gasoline

M. Carder Micro-Flo 1000

Micro touch valve for precise flow control
Pure Teflon stem packing eliminates leaks
Super tough nylon hand guard and hold open clip
Roto-matic latch pin for smoother auto shut off
Snap on handle & lever cover
UL listed for use with gas, 10% ethanol blend, and diesel

Specifications
PIUSI Panther EX 56

Flow Rate: 16
Volt: 120/60 HZ
HP: 3/4
AMP. Max.: 7.5
Inlet Filter: Yes

Aggie Gas™ – With Static Wire

Tube: Nitrile synthetic rubber (ORS)
Cover: Black or Red Chemivic™ synthetic rubber (ORS)
Reinforcement: Spiral synthetic yarn
Temperature Range: -30°F to 140°F (-34°C to 60°C)

Downloads
Specification Sheet (PDF Download)
