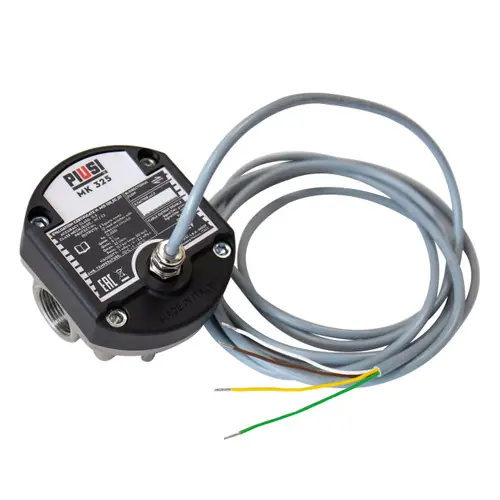

PIUSI MK325 3/4 in. BSP AdBlue® Electronic Meter – Protection for Zone 2

Description

PIUSI MK325 3/4 in. BSP AdBlue® Electronic Meter – Protection for Zone 2
The PIUSI MK325 is a state-of-the-art flow meter, specifically designed to ensure accurate MID measurement of AdBlue®. It is compatible with both fixed and mobile dispensing systems, offering precision and reliability in various industrial applications.

Features

MID Evaluation Certificate: Ensures reliable and standard-compliant measurements.
Low Maintenance Costs: Designed for minimal upkeep and long-term efficiency.
Bidirectional Measurement: Capable of measuring flow in both directions.
ATEX Certification: Certified for use in potentially explosive environments.

Specifications

Accuracy: ±0.3%
ATEX Certified: EX-M Z2
Body: Stainless Steel
Cable Box: Aluminium
Cable Length: 10 ft.
Degree of Protection: IP67
Flow Rate: 1.3 to 9.3 GPM
Gear: PEEK
Maximum Pressure: 290 PSI (20 bar)
Protection: IP67
Pulse Output: 160 pulse out (P/L)
Repeatability: ±0.2%
Seals: Nitrile
Size: 3/4 in. BSP
