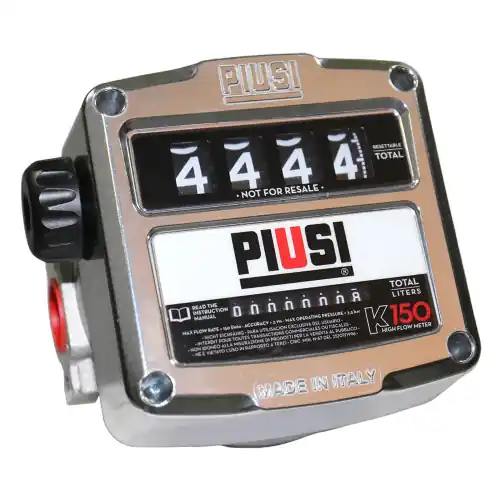

PIUSI K150 1 in. NPT Mechanical Flow Meter UL-Listed

Description

PIUSI’s K150 flow meter is a UL listed mechanical nutating disc type meter that is designed to guarantee accurate metering of gasoline, diesel, and kerosene. The meter is equipped with an oscillating disc reading system that guarantees ±1% accuracy in measuring the fuel delivered at medium flow rates.PIUSI’s K150 has a flow rate range from 6 to 40 GPM (25 to 150 LPM). It is suitable for all those sectors that need to operate on vehicles with large tanks.FeaturesHigh flowSturdy structureEasy to install and calibrateConfigurations can be rotatedAccuracy ±1%Up to 33% less pressure dropUL certifiedSpecificationsMeter Mechanism: Nutating DiskInlet/Outlet: 1 in. NPTFlow Rate: 6 to 40 GPM (25 – 150 LPM)Operating Pressure: 50 PSI (3.5 bar)Burst Pressure: 400 PSI (28 bar)Operating Temperature: -22 +140°F (-30 +60°C)Accuracy: +/- 1%Repeatability: +/- 0.3%Readout: LitersBatch Readout: 4 digits (Height 18 mm)Totalizer Readout: 8 digits (Height 6 mm)ApplicationsAgricultureFleetIndustrialMarineOff-RoadDownloadsProduct Manual (PDF Download)Face Rotation Instructions (PDF Download)
