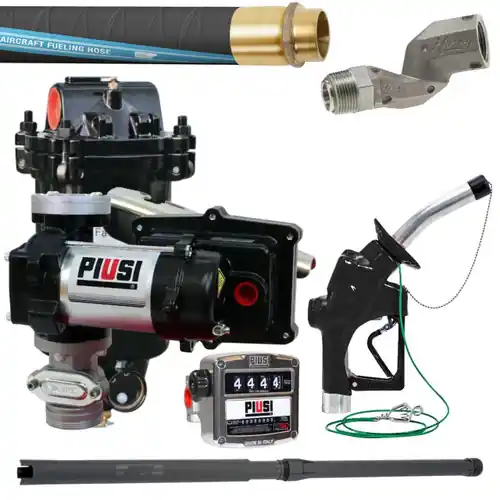

PIUSI F0038800 EX75 DC Avio 12V DC 20 GPM Aviation Fuel Transfer Pump Package w/ Meter & Filter

Description

PIUSI F0038800 EX75 DC Avio 12V DC 20 GPM Aviation Fuel Transfer Pump Package w/ Meter & Filter The PIUSI Panther EX 72 Avio Fuel Transfer Pump Package with integrated K150 mechanical flow meter and Facet VF-21SB filtration system is a complete aviation fueling solution engineered for precision, safety, and durability. Designed for AVGAS and Jet A-1 applications, this system delivers a consistent flow rate of 20 GPM and supports low-volume fueling for business and private aircraft. The pump features a grooved rotor with spring-loaded vanes for continuous duty, a magnetic switch for secure operation, and an easy-lock spin collar for simplified installation. The K150 flow meter ensures ±1% accuracy across flow rates from 6.6 to 40 GPM, while the VF-21SB filter housing with 1-micron coalescer cartridge removes water and particulates for clean fuel delivery. UL certified and built with aviation-grade components, this package offers reliable performance in demanding environments.FeaturesContinuous Duty Pump Operation: Grooved rotor and spring-loaded vanes support uninterrupted fueling.Magnetic Safety Switch: Enhances control and safety during fuel transfer.Easy-Lock Spin Collar: Provides secure and quick installation.Automatic Shut-Off Nozzle: Prevents overfilling by stopping flow when tanks are full.Integrated Fuel Filter: 100 mesh stainless steel filter and 1-micron coalescer cartridge ensure clean fuel.Color-Coded Grip Guards: Red grip for AVGAS, black grip for Jet A-1 applications.High-Capacity Flow Meter: Nutating disc system delivers ±1% accuracy with minimal pressure drop.Versatile Meter Installation: Supports flow from four directions with a 4-digit counter and 8-digit totalizer.Certified for Aviation Use: UL listed and ATEX certified for flammable environments.Robust Filter Housing: Epoxy-coated carbon steel body with swing bolt closure for easy maintenance.SpecificationsAccuracy: ±1%Body Material: Aluminum (Pump & Meter), Carbon Steel (Filter Housing)Certification: UL CertifiedChamber Material: TechnopolymerCounter: 4-Digit VolumetricFlow Directions: 4 ConfigurableFlow Rate: 6.6–40 GPM (Meter), 20 GPM (Pump)Gasket: Nitrile RubberInlet: 1 in. / 25.4 mm NPT (Pump), 1 1/2 in. NPT (Filter)Lever: One piece contoured steelMaDifferential Pressure: 75 PSIMaOperating Temperature: 240°F (115°C)Micron Size: 1Operating Pressure: 145 PSI MaxPacking: Double o-ring seal protected by fiber reinforced Teflon®PH Range: 5 to 9Power Supply: 12V DCPressure Drop: Up to 33% LessRotor Type: GroovedSeals: FluorocarbonSwitch Type: MagneticTemperature Range: -20°C to +60°CTotalizer: 8-Digit Non-ResettableVane Type: Spring LoadedVent/Drain: Brass PetcocksKit ContentsHI1149812BLK: Hewitt Osprey Aviation Over Wing Fueling NozzlePIF0038800: PIUSI F0038800 EX75 DC Avio 12V DC 20 GPM Fuel Transfer Pump – AviationAGYJETRANGER100X20MXM: Continental ContiTech Jet Ranger™ 1 in. 300 PSI Aviation Fueling Hose Assembly w/ Brass Male NPT EndsPIF00559000: K150 Avio 1 in. NPT High Capacity Mechanical Flow Meter (Gallons) – AviationPFVF21SB: Facet Fuel-Gard VF-21SB In-Line Filter HousingPFCC217: Facet Fuel-Gard VF-21SB Coalescer (Air/Gas) Separator Filter Cartridge – 1 Micron
