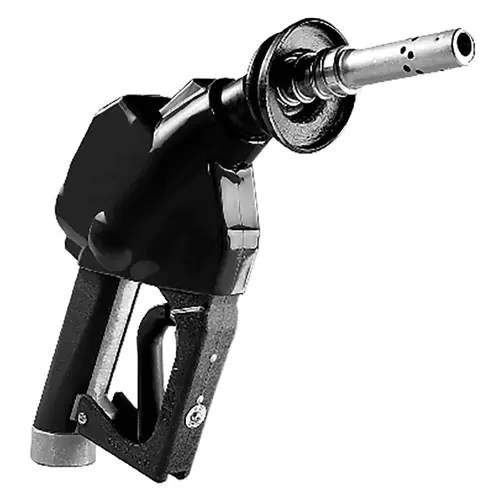

OPW 12VM Automatic Vacuum-Assist Nozzle, UL Listed

Description

The OPW 12VM Series automatic nozzles are one of premium nozzles for vaccum-assist vapor recovery systems. It is designed with an integreated vapor-valve. It is certified on:

Dresser/Wayne Wayne Vac
Gilbarco VaporVac
Schlumberger
Vacurite

Features
Safe for use

UL Listed for use in gasoline, diesel and up to 10% ethanol blends
Prevents gasoline spills in pre-pay or card-lock systems utilizing OPW’s unique No Pressure – No Flow Device
This nozzle cannot be opened until the pumping system is pressurized and closes automatically when the pressure is removed
Prevents consumer from jamming the nozzle in an open position- blocker on lever guard
FlowLock allows nozzle to shut off when falling out of a vehicle, and is tipped up, limiting spillage and unsafe conditions
Vapor Escape Guard (VEG) improves vapor collection
Lever-activated vapor valve only opens when product is flowing controlling the amount of vapors collected from the vehicle.

Durable and long lasting

Stainless steel insert in spout to last longer than standard aluminum only spouts
Durable lever guard that won’t scratch your customer’s vehicles- made from Duratuff
New hold-open clip spring lasts longer than before
Internal vapor path- no replacement parts needed

Appealing to customers

Easy to use- utilizing Accu-Stop to the penny flow control technology
2 piece Newgard hand insulator is very comfortable
One finger hold-open clip is easy to set the flow-rate

Specifications

Body: Aluminum
Lever & Lever Guard: Duratuff
Packing: Graphite with Teflon
Disc: Viton
Spout: Aluminum w/ stainless steel tip
Inlet Size: M34 Metric
Pressure: 50 PSI (3.45 bar) maximum pressure
