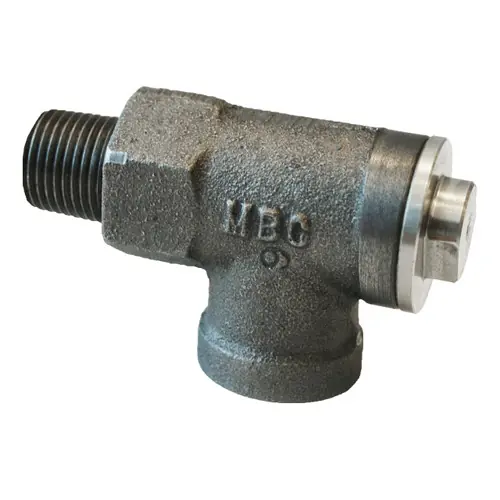

Morrison Bros. 078DI Series 1/2 in. Expansion Relief Valve – 40 PSI

Description

Expansion Relief Valves are used on AST piping for relief of excess pressure caused by thermal expansion of liquid. The Valve allows product to return back to the storage tank. Pressure settings are approximate.

Features

Not for use with leak detection systems
One way flow
Approximate settings available; 25, 40 or 100 PSI
Body: Ductile iron
Cap: Stainless steel
Expansion Relief Valve: Stainless Steel & FKM
Spring: Stainless Steel
Check Ball: Stainless Steel

Specifications

Series: 078DI
Material: Ductile iron
Size: 1/2 in.
Pressure: 40 PSI
