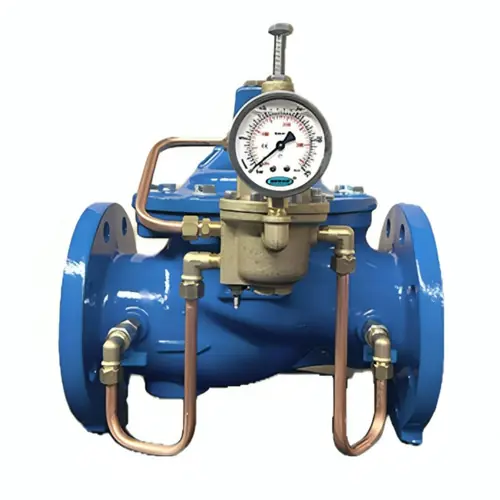

MIFAB ACV8.00-HF-T-PR 8 in. ANSI 150 Flanged Automatic Control Valve

Description

MIFAB ACV8.00-HF-T-PR 8 in. ANSI 150 Flanged Automatic Control Valve
The MIFAB ACV8.00-HF-T-PR is an 8-inch ANSI 150 flanged automatic control valve designed with a ductile iron body and cover. This valve features a resilient seal disc, guided top and bottom, with a bottom guide consisting of vanes sliding in a stainless steel seat arrangement. It is a single-seated, line pressure-operated, diaphragm-actuated, pilot-controlled valve. The valve seals via a stainless steel seat, and all parts are replaceable in the field without removing the valve from the line. All flange dimensions, including face-to-face lengths, conform to ISO standards.

Features

High Flow Capacity: Designed with full port high flow pressure reducing valves to ensure maximum flow efficiency and performance.
Control System: Equipped with advanced main control system components for precise and reliable operation.
Durable Construction: Built with a robust ductile iron body and cover, ensuring long-lasting durability and strength.
Reliable Sealing: Features a resilient seal disc that provides consistent and dependable sealing performance.
Precision Engineering: Incorporates a stainless steel seat arrangement for accurate and smooth operation.
Efficient Operation: Diaphragm actuated design allows for efficient and responsive valve control.
Advanced Control: Pilot controlled mechanism offers superior control and regulation of pressure.
Easy Maintenance: All parts are field replaceable, allowing for straightforward maintenance without removing the valve from the line.
Standard Compliance: Flange dimensions conform to ISO standards, ensuring compatibility and ease of installation.

Specifications

Body Cover: Ductile Iron
Coating: Epoxy Powder (Blue)
Diaphragm: Reinforced Natural Rubber
Fittings: Forged Brass
Flanged: Class 150
Internals: Stainless Steel, Ductile Iron with epoxy coating
Main Valve Type: Diaphragm Actuated, Disc Closed, Globe, Single Chamber
Operation Pressure: 10 – 360 PSI
Pressure Reducing Pilot: Brass
Seals: Nitrile
Size: 8 in.
Tubing: Copper
Working Temperature: (15° – 175° F)
