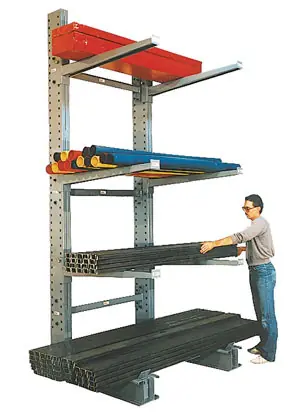

MECO Series 1000 Medium Duty Single Sided Cantilever Rack Unit , 10 ft. H, (12) 36 in. L Arms

Description

This Meco series 1000 medium duty cantilever rack units is a complete storage system designed with flexibility and simplicity in mind. Meco Omaha has assembled the most popular standard heavy duty and medium duty cantilever components to create start and add-on units. Taking the guesswork out of selecting a rack system.. Each single sided starter unit includes: (2) 10 ft. H uprights, (12) 36 in. L straight arms and 47 in. brace set. Create a continuous rack system by adding a single sided add-on units (see AM10).
Note: Single sided starter units can use only single side add-ons that are the same height and capacity. Double sided starter units use double sided add-on units that are the same height and capacity. Contact a JME Sales Specialist for Details at 800-333-3331.

Specifications

Single Sided Starter Unit
Height: 10 ft.
Capacity: 3,800 lbs.
Base Length: 45 in. L
Arm length: 36 in.
Arm quantity: 12
Arm Capacity: 400 lbs.

Includes

(2) 10 ft. H uprights
(12) 36 in. L Straight arms
(1) 71 in. L brace set
