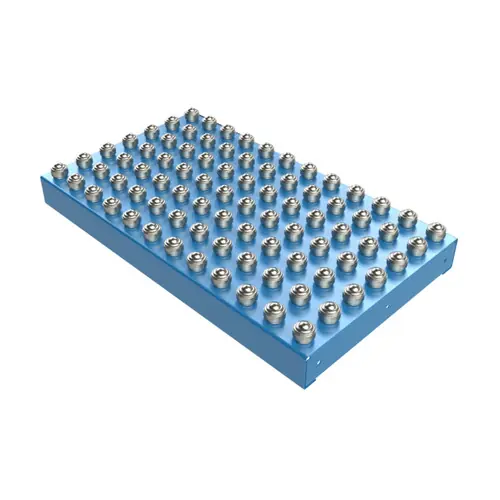

LEWCO BPB Series Deep Plate Style Steel Ball Transfer Table, Straight Ball Pattern – Compatible with Supports/Stands

Description

LEWCO’s Ball Transfer Tables are used to manually rotate, reposition, or remove flat bottom surfaced products easily and efficiently. They can be used on the floor, as stand-alone tables or inserted into non-powered conveyor systems. These units are designed as a free-standing transfer table with smooth edges. Accepts standard LEWCO SPH series supports (sold separately). Notes: Supports/stands sold separately. Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Features Deep Plate Style Ball Transfer Table Straight Ball Pattern OSHA Safety Blue ISO 9001 Quality Specifications Series: BPB Ball Transfer Table Table Length: 2 – 4 ft. (24 – 48 in.) Table Width: 2 – 4 ft. (24 – 48 in.) Ball Centers: 3 – 6 in. Ball Type and Capacity: 65 lb. Capacity, Steel Surface with Flange Ball Transfer: Standard 1 in. Diameter with 1/4-20 UNC Stud Mount Ball Pattern: Straight Ball Cover: None Frame: Standard 12 Gauge Formed Steel Plate with Angle Stiffeners Located on Nominal 12 in. Centers and Both Ends Mounting: Standard 7/16 in Mounting Holes on Both Ends Supports/Stands: Not Included – Compatible with LEWCO’s SPH Supports (Sold Separately) Guardrail: None Finish Color: 94 – OSHA/Traffic Blue (RAL 5017) Notes: Supports/stands sold separately. Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Applications Application: Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes Non-Contact Accumulation Side Loading/Unloading Accumulation of Loads Where it Works: Warehousing & Distribution Manufacturing Order Fulfillment Aerospace Government Military & Agency Automotive Parcel Handling Appliance Cabinetry & Furniture Food & Beverage Downloads Product Data Sheet (PDF Download)
