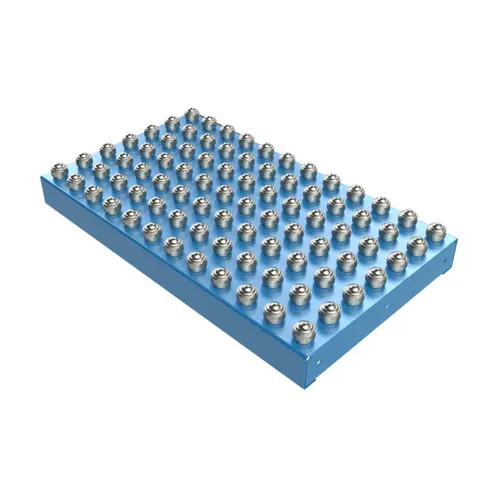

LEWCO BPB Series Deep Plate Style Steel Ball Transfer Table, Straight Ball Pattern, 4 ft. Length x 4 ft. Width, 3 in. Ball Centers

Description

LEWCO’s Ball Transfer Tables are used to manually rotate, reposition, or remove flat bottom surfaced products easily and efficiently. They can be used on the floor, as stand-alone tables or inserted into non-powered conveyor systems. These units are designed as a free-standing transfer table with smooth edges. Accepts standard LEWCO SPH series supports (sold separately). Notes: Supports/stands sold separately. Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Back to Main Listing Features Deep Plate Style Ball Transfer Table Straight Ball Pattern OSHA Safety Blue ISO 9001 Quality Specifications Series: BPB Ball Transfer Table Part: BPB-48-48-3-A85 Table Length: 4 ft. (48 in.) Table Width: 4 ft. (48 in.) Ball Centers: 3 in. Ball Type and Capacity: 65 lb. Capacity, Steel Surface with Flange Ball Transfer: Standard 1 in. Diameter with 1/4-20 UNC Stud Mount Ball Pattern: Straight Ball Cover: None Frame: Standard 12 Gauge Formed Steel Plate with Angle Stiffeners Located on Nominal 12 in. Centers and Both Ends Mounting: Standard 7/16 in Mounting Holes on Both Ends Supports/Stands: Not Included – Compatible with LEWCO’s SPH Supports (Sold Separately) Guardrail: None Finish Color: 94 – OSHA/Traffic Blue (RAL 5017) Weight: 214.56 lbs. Notes: Supports/stands sold separately. Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Applications Application: Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes Non-Contact Accumulation Side Loading/Unloading Accumulation of Loads Where it Works: Warehousing & Distribution Manufacturing Order Fulfillment Aerospace Government Military & Agency Automotive Parcel Handling Appliance Cabinetry & Furniture Food & Beverage Downloads Product Data Sheet (PDF Download)
