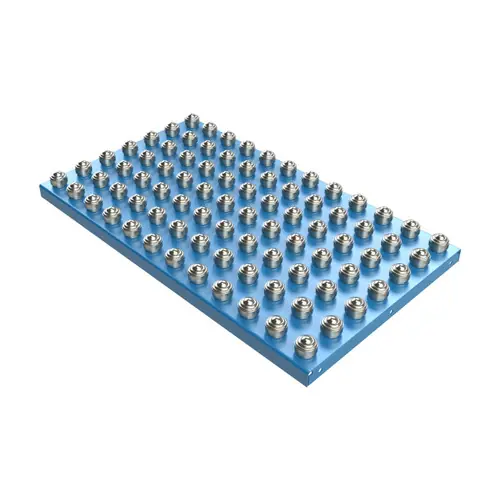

LEWCO BPA Series Plate Style Steel Ball Transfer Table, Straight Ball Pattern, 2 ft. Length x 4 ft. Width, 3 in. Ball Centers

Description

LEWCO’s BPA Ball Transfer Tables are used to manually rotate, reposition, or remove flat bottom surfaced products easily and efficiently. They can be used on the floor, as stand-alone tables or inserted into non-powered conveyor systems. The BPA Transfer Tables don’t have provisions to attach supports/stands. These units are designed to be placed on an existing work table, scissor table or cart. See LEWCO’s BPB Transfer Table for units compatible with supports/stands. Notes: Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Back to Main Listing Features Plate Style Ball Transfer Table Straight Ball Pattern OSHA Safety Blue ISO 9001 Quality Specifications Series: BPA Ball Transfer Table Part: BPA-48-24-3-A85 Table Length: 2 ft. (24 in.) Table Width: 4 ft. (48 in.) Ball Centers: 3 in. Ball Type and Capacity: 65 lb. Capacity, Steel Surface with Flange Ball Transfer: Standard 1 in. Diameter with 1/4-20 UNC Stud Mount Ball Pattern: Straight Ball Cover: None Frame: Standard 12 Gauge Formed Steel Plate with Angle Stiffeners Located on Nominal 12 in. Centers and Both Ends Mounting: Standard 7/16 in Mounting Holes on Both Ends Supports/Stands: None – Not Compatible Guardrail: None Finish Color: 94 – OSHA/Traffic Blue (RAL 5017) Weight: 103.68 lbs. Notes: Other sizes, features, and options available. See “Product Data Sheet” (Downloads tab) for the list of options. Please call 1-800-333-3331 for more information. Applications Application: Convey loads of Cartons, Totes, Fixtures, Cardboard Boxes Non-Contact Accumulation Side Loading/Unloading Accumulation of Loads Where it Works: Warehousing & Distribution Manufacturing Order Fulfillment Aerospace Government Military & Agency Automotive Parcel Handling Appliance Cabinetry & Furniture Food & Beverage Downloads Product Data Sheet (PDF Download)
