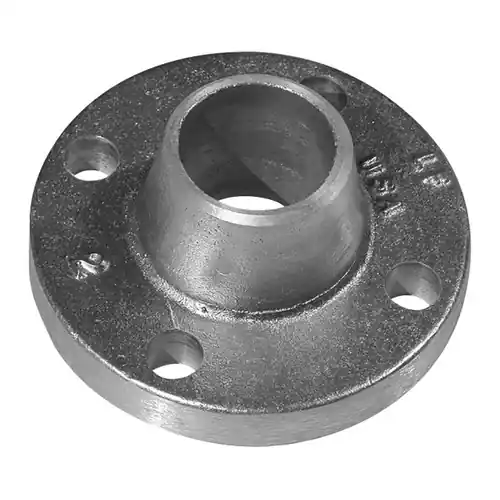

Latrobe Foundry Aluminum Full Face Flanges, Weld Neck

Description

Latrobe Foundry flanges have a general conformance with dimensional standard MIL-DTL-52618-E & are in accordance with dimensional standard ANSI B16.1. Fittings are random tested at 120 pounds of air pressure under water, for a normal surface condition rating of 150 pounds of pressure. Constructed of Aluminum alloy 356-F, not anodized. Individual fittings are not marked with alloy or pressure data. Used in a variety of businesses, including agricultural, chemical, construction and marine industries. Specifications SizeFlange Dia.Flange ThicknessLength Through HubBore Dia. 1/2 in. 3-1/2 in. 7/16 in. 1-7/8 in. 5/8 in. 3/4 in. 3-7/8 in. 1/2 in. 2-1/16 in. 13/16 in. 1 in. 4-1/4 in. 9/16 in. 2-3/16 in. 1-1/16 in. 1-1/4 in. 4-5/8 in. 5/8 in. 2-1/4 in. 1-3/8/ in. 1-1/2 in. 5 in. 11/16 in. 2-7/16 in. 1-5/8 in. 2 in. 6 in. 3/4 in. 2-1/2 in. 2-1/16 in. 2-1/2 in. 7 in. 7/8 in. 2-3/4 in. 2-15/32 in. 3 in. 7-1/2 in. 15/16 in. 2-3/4 in. 3-1/6 in. 4 in. 9 in. 15/16 in. 3 in. 4-1/32 in. 5 in. 10 in. 15/16 in. 3-1/2 in. 5-1/32 in. 6 in. 11 in. 1 in. 3-1/2 in. 6-1/16 in.
