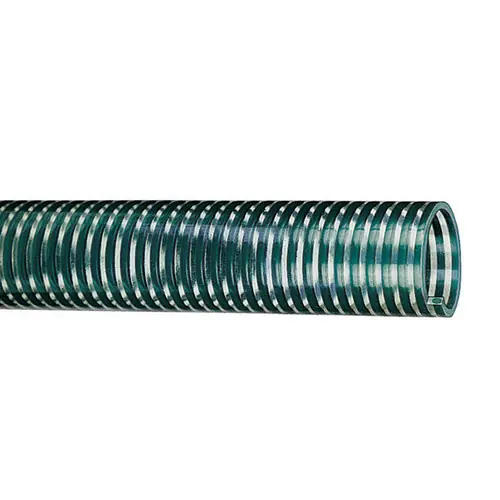

Kuriyama Tigerflex K Series 6 in. Standard Duty PVC Suction Hose – Hose Only

Description

Kuriyama’s K Series Standard Duty PVC Suction Hose is a versatile and durable solution for various applications. Constructed with transparent PVC for visual confirmation of material flow. Made in the USA. Service Temperature Range: -4°F to +150°F (-20°C to +65°C) Notes: Hose only (no ends). Hose is priced by the foot. Available in lengths from 5 ft. up to 100 ft. Features Transparent Construction: “See-the-flow” – Allows for visual confirmation of material flow Convoluted Outer Cover: Provides increased hose flexibility Phthalate Free Made in the USA Specifications Series: K Type: Standard Duty PVC Suction Hose Inside Diameter (ID): 6 in. (152.4 mm.) Outside Diameter (OD): 6.75 in. (171.4 mm.) Ends: None (Hose Only) – Assemblies Available – Please Call 1-800-333-3331 for More Information Length: Per ft. Construction: PVC Tube with Rigid PVC HeliColor: Green – Transparent Working Pressure: @68°F: 40 PSI @104°F: 25 PSI Vacuum Rating Hg: @68°F: 28 in. @104°F: 20 in. Min. Bending Radius (@68°F): 30 in. Service Temperature Range: -4°F to +150°F (-20°C to +65°C) – Actual Service Temperature Range is Application Dependent Weight: 3.39 lbs./ft. Applications Agricultural Liquid Fertilizer Air Seeder Lines Drain Lines Irrigation Lines Mining Applications Pumps, Rental and Construction Dewatering Pumps, Trash Rock Dusting Water Suction – Standard Duty
