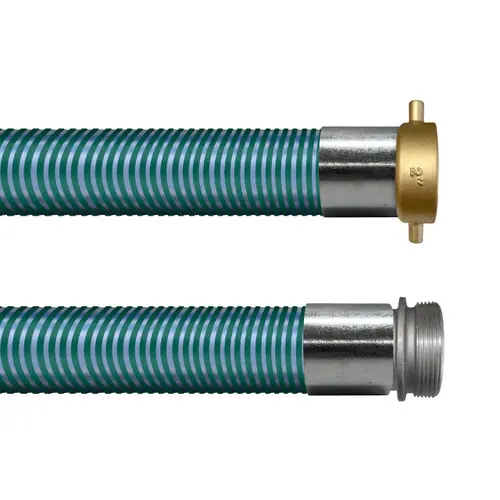

Kuriyama Tigerflex K Series 4 in. PVC Suction Hose w/ Pin Lug Couplings

Description

Kuriyama TigerfleK Series PVC suction hose with it’s see thru design allows for visual confirmation of material flow. The K Series with its PVC tube and PVC heliallows for a smooth outer cover that makes it easy to band and move. The hose is assembled with a female pin lug on one end and a male pin lug on the other end making it easy to attach a strainer. Service Temperature: -4°F to 150°F Application / Material Conveyed Agri-Foam System Air Seeder Lines Fertilizer Transfer, Liquid General Construction Usage Irrigation Lines LatePaint Transfer/ Spraying Equipment Rock Dusting Spa, Pool Installations Water Suction and Transfer Well Point System Specifications                 Hose ID Hose OD Maximum Vacuum Min Bend     (IN) (IN) PSI Rating Radius         68°F/104°F 68°F/104°F (IN)     1 1/2 1.83 70/50 28/24 5     2 2.32 65/45 28/24 7     3 3.43 60/40 28/22 10     4 4.50 50/35 28/22 15     6 6.75 40/25 28/20 30
