Krueger Sentry LED At-A-Glance Remote Display with Alarm

Description

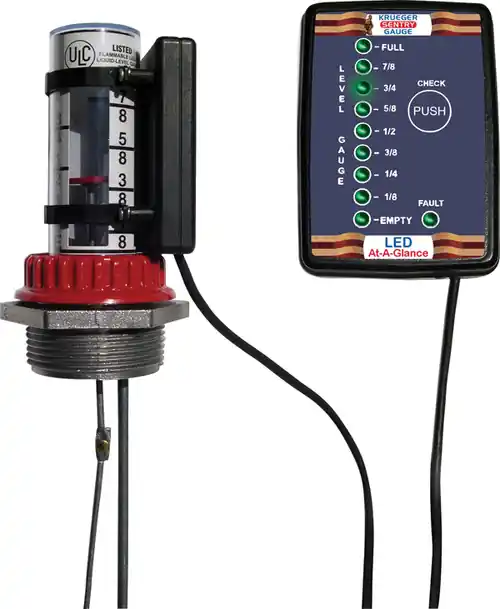

Krueger Sentry At A Glance LED Remote Gauge System
The “LED At-A-Glance” gauge system is an electronic remote read that accurately and reliably measures the fuel level in your fuel tank. It transmits and displays the level information to a wired LED display located in a convenient location on your premises. This remote display accessory retrofits to nearly any Krueger Sentry liquid level tank gauge. By mounting the magnetic sensor to a level gauge on your tank, you can remotely monitor the tank with a wired LED display up to 100 feet away. Installation is quick and easy: four screws, position the magnet, run the wire, and mount the display.

Features

Indoor and Outdoor Use: Suitable for both indoor and outdoor applications.
Fault Indicator: Yellow LED illuminates if any fault occurs in the system.
Power Source: Powered by an industry-standard 9V Lithium battery, change after one year of use. Standard 9V batteries also work.
Remote Display: Can be located anywhere within 100 feet of the transmitter. Comes with 25 feet of remote wire, additional wire can be added.
Adjustable Alarms: Hi or Low level adjustable alarms, which can also be disabled.
Battery Conservation: Automatic sleep mode to conserve battery life.

Specifications

Alarms: Hi and Lo level adjustable alarms (can be disabled)
Compatibility: Retrofits to nearly any liquid level tank gauge
Installation: Quick and easy, four screws, position the magnet, run the wire, mount the display.
Power: 9V Lithium batter
Range: Up to 100 feet
Wire Length: 25 feet (additional wire can be added)

Operation:

The Display/Receiver displays the liquid level on a row of LED’s where each LED represents approximately a 1/8 of the tank’s capacity
The row of LED’s is green from 3/8 of a tank to full
When the level goes to 1/4 tank the highest LED illuminated will be yellow
At 1/8 of a tank the highest LED illuminated will be red
