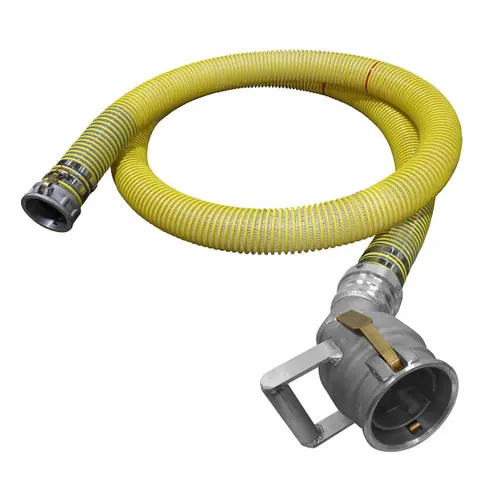

Kanaflex ST 120 UACVR 4 in. Vapor Recovery Hose Assemblies w/ Part C Female Coupler x Swivel 45° CPP Ends

Description

Kanaflex’s ST 120 UACVR Vapor Hose is used for tank truck and terminal recovery of gasoline, ethanol, and biodiesel vapors. Constructed from lightweight clear static dissipating non-permeable polyurethane with a smooth bore, corrugated O.D., rigid PVC helix, and static grounding wire. Please call for pricing on other vapor hose assemblies, due to the wide variations of hose length and fittings involved. We want to be sure you get the right vapor hose for your application. Please call 1(800)333-3331 for more information. Hose Ends: Hose assemblies come with a standard 4 in. Part C female coupling on one end and a 4 in. Part CPPSWIV female coupler with probe, check valve and handle on 45° swivel hose shank on the other. Part C = 4 in. Female Coupler Hose Shank Part CPPSWIV = 4 in. Female Coupler w/ Probe, Check Valve and Handle on 45° Swivel Hose Shank Features Lightweight and flexible even in sub-zero temperatures Polyurethane construction allows use with all gasoline blends, biodiesel (up to B100), ethanol (up to E85; currently testing E100), kerosene, diesel, and ASTM fuel oils Static dissipating tube combined with multi-strand copper static wire provides the ultimate protection against static discharge Clear tube allows visual confirmation of fuel backup into the hose Specifications Series: ST 120 UACVR Inside Diameter (I.D.): 4 in. (101.6 mm.) Outside Diameter (O.D.) 4.57 in. (116.1 mm.) Pitch: 0.65 in. Length: 10 – 30 ft. – Other Lengths Available – Please Call 1-800-333-3331 for More Information Hose Ends: 4 in. Female Coupler 4 in. Female Coupler w/ Probe, Check Valve and Handle on 45° Swivel Hose Shank Material: Polyurethane with Multi-Strand Copper Static Wire Temperature Range: -52°F to 140°F (-52°C to +60°C) Minimum Bend Radius: 4.0 in. Working Pressure: 7 PSI Vacuum Rating (@ 72°F): 13 in. Hg Fuel Compatibility: Gasoline Blends, Biodiesel (up to B100), Ethanol (up to E85), Kerosene, Diesel, and ASTM Fuel Oils Color: Yellow Weight: 0.98 lbs./ft.
