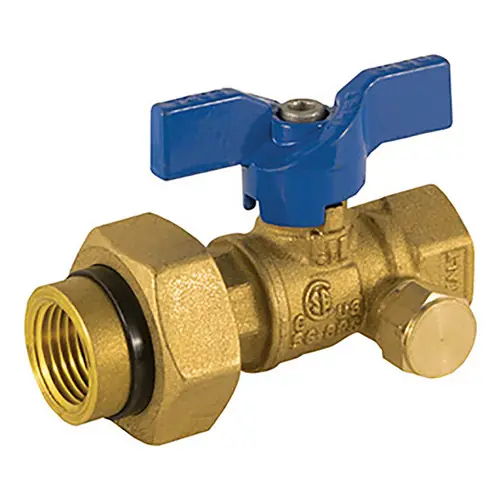

Jomar Valve T-203DU FIP X FIP Dielectric Union End Gas Ball Valve w/Side Tap, 600 PSI, Lifetime Warranty

Description

Jomar Valve T-203DU 2 piece female dielectric union end female npt connection gas ball valves. Meets NFPA 58 dielectric union requirement. Made from an alloy of copper and zinc, this brass valve offers malleability and corrosion resistance, with added durability. Brass is stronger and harder than copper, yet more malleable than steel and iron, allowing the valve to resist cracking. It can withstand extremely high temperatures, and will not rust.
This item is for use only in non-potable (non-human consumption) water applications.

Features

Valve can be locked in the closed position by reversing the handle
Eliminates need for test tee and labor to install
Inline body style
Removable plug enables port for pressure gauge
Double O-Ring stem design
Aluminum handle
Leakproof stem- Lifetime Warranty
100% leak tested

Specifications

T- handle
1/8 in. side tap
Female dielectric union end
FNPT connection end
600 PSI/WOG
Temperature Range: -40 ° F to 450° F
Stem: Viton O-ring
Seat: PTFE
Approvals: MSS SP-110 & ANSI B1.20.1
CSA certified
UL listed: YSDT- LP gas shut-off valves
Meets NFPA 58 dielectric requirement
100% Made in Italy
