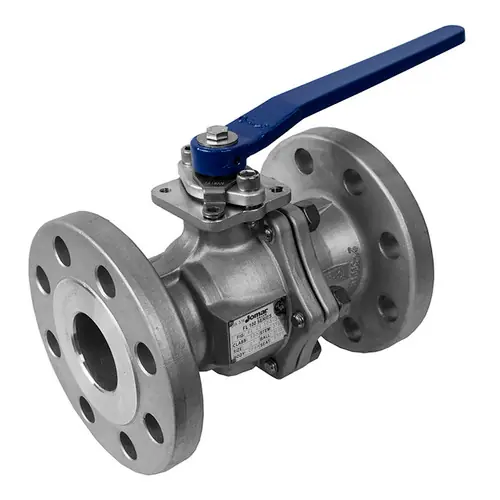

Jomar Valve FL-SS-100-300 Series Flanged Stainless Steel Ball Valve, Full Port

Description

Jomar Valve stainless steel 2 piece ball valve has flanged connections with full port ends. Has a wrench operated locking handle.

Features

Wrench operator
Locking device is standard
Fire safe stem and body
Cast stainless steel body
100% leak tested
Wetted surfaces contain less than .25% lead content

Specifications

Full port ball valve
Flanged connection
Wrench lock handle
Air tested seat leakage: 85 PSI
Hydraulic tested body: 1124 PSI
Body & packing gland seal: PTFE/ Graphite
PTFE seat & seals
CF8M & 304 stainless steel materials
Class 300: 700 WOG ( 700 PSI)
Conforms to ANSI B16.34 & B16.5
CSA certified

Downloads
Product Manual (PDF Download)
