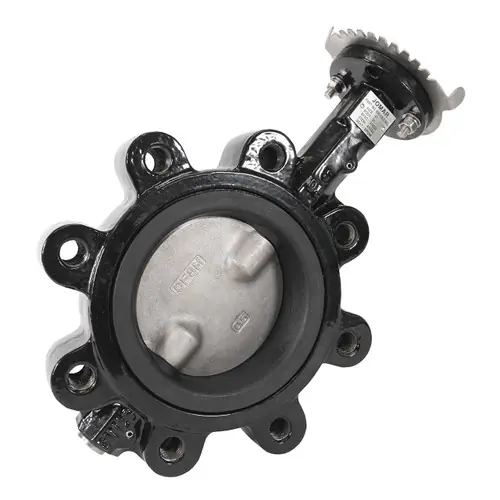

Jomar Valve BVF-Lug Style Epoxy-Coated Ductile Iron Butterfly Valves w/SS Disc & Gear Handle, EPDM Seals

Description

Lug style butterfly valve designed for commercial and industrial applications up to 220 PSI. Series 600 Lug bodies are bi-directional for dead end service. Features Ideal for mounting pneumatic/electrical actuators. Easily accepts actuator with ISO 5211 mounting flange Seat to flange seal eliminates the need for flange gaskets Ideal for mounting pneumatic/electrical actuators Square stem for direct mount Wetted surfaces contain less than .25% lead content Specifications Gear Operator handle -30° F to 250° F Temperature range 2 in. to 12 in. 220 PSI / 14 in. to 24 in. 150 PSI inline service Epoxy-Coated Ductile Iron Body EPDM seal 410 Stainless Steel lower and upper shaft CF8M Stainless steel disc PTFE bushing EPDM O-ring Meets API 609 & MSS SP-67 NSF 61 / NSF 371 certified Downloads Product Manual (PDF Download)
