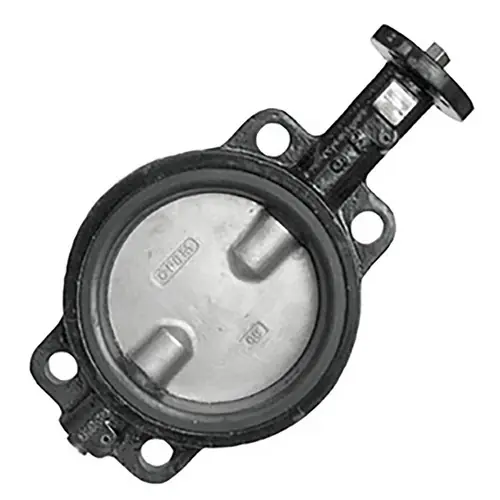

Jomar Valve BFV-Wafer Epoxy-Coated Ductile Iron w/SS Disc Butterfly Valves, Nitrile Rubber Seals, Wafer Style, Gear Handle

Description

Wafer style butterfly valve designed for commercial and industrial applications up to 200 PSI. Seat to flange seal eliminates the need for flange gaskets. 14 in. to 24 in. sizes come with gear operator. Features Easily accepts actuator with ISO 5211 mounting flange Ideal for mounting pneumatic/electrical actuators Square stem for direct mount Wetted surfaces contain less than .25% lead content Specifications Nitrile Rubber Seal 10°F to 180°F Temperature range 2 in. to 12 in. sizes 200 PSI/ 14 in. to 24 in. 150 PSI inline service Epoxy-Coated Ductile Iron Body Nitrile Rubber seal 410 Stainless Steel lower and upper shaft CF8M Stainless steel disc PTFE bushing EPDM O-ring Meets API 609 & MSS SP-67 NSF 61 / NSF 372 certified Downloads Product Manual (PDF Download)
