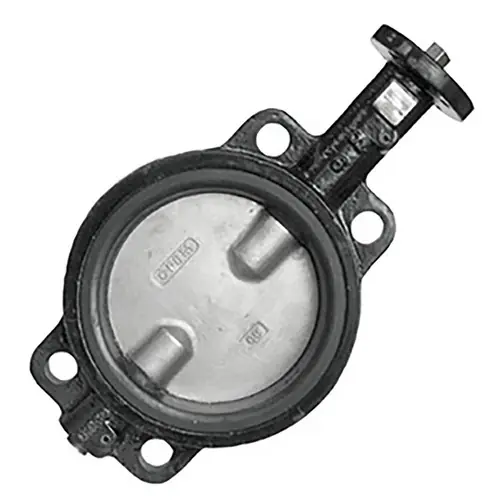

Jomar Valve 900 Series Epoxy-Coated Ductile Iron w/SS Disc Butterfly Valves, Nitrile Rubber Seals, Wafer Style, L-Lever handle

Description

Wafer style butterfly valve designed for commercial and industrial applications up to 200 PSI. Seat to flange seal eliminates the need for flange gaskets. N 2-6 in. sizes come with L lever handle. Features Easily accepts actuator with ISO 5211 mounting flange Ideal for mounting pneumatic/electrical actuators Square stem for direct mount Wetted surfaces contain less than .25% lead content Specifications Nitrile Rubber Seal 10°F to 180°F Temperature range 2 in. to 12 in. sizes 200 PSI/ 14 in. to 24 in. 150 PSI inline service Epoxy-Coated Ductile Iron Body Nitrile Rubber seal 410 Stainless Steel lower and upper shaft CF8M Stainless steel disc PTFE bushing EPDM O-ring Meets API 609 & MSS SP-67 NSF 61 / NSF 372 certified Downloads Product Manual (PDF Download)
