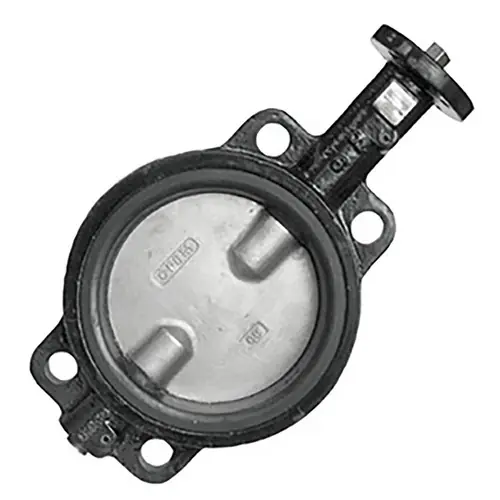

Jomar Valve 900 Series Epoxy-Coated Ductile Iron w/SS Disc Butterfly Valves, Nitrile Rubber Seals, Wafer Style, Bare Stem

Description

Wafer style butterfly valve designed for commercial and industrial applications up to 200 PSI. Seat to flange seal eliminates the need for flange gaskets. 8-12 in. sizes are bare stem.

Features

Easily accepts actuator with ISO 5211 mounting flange
Ideal for mounting pneumatic/electrical actuators
Square stem for direct mount
Wetted surfaces contain less than .25% lead content

Specifications

Nitrile Rubber Seal
10°F to 180°F Temperature range
2 in. to 12 in. sizes 200 PSI/ 14 in. to 24 in. 150 PSI inline service
Epoxy-Coated Ductile Iron Body
Nitrile Rubber seal
410 Stainless Steel lower and upper shaft
CF8M Stainless steel disc
PTFE bushing
EPDM O-ring
Meets API 609 & MSS SP-67
NSF 61 / NSF 372 certified

Downloads
Product Manual (PDF Download)
